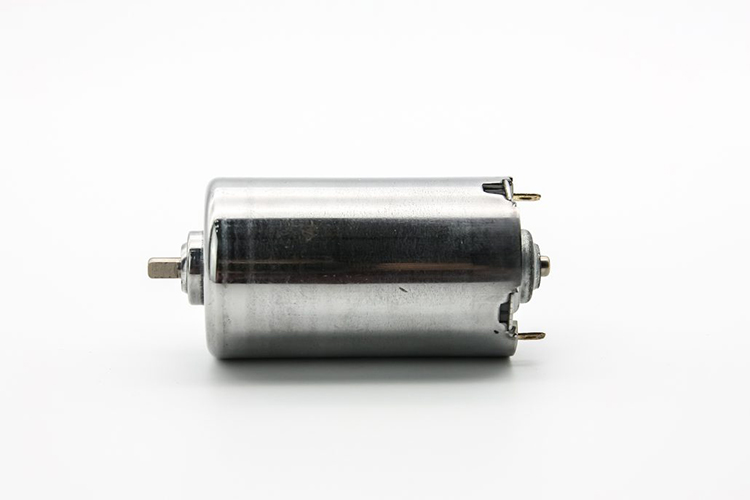

For Car Seat DC Motor

Model No.:
CB- RS785SH
Features:
For Car Seat DC Motor



Product Features


1) Suitable for Car seat.

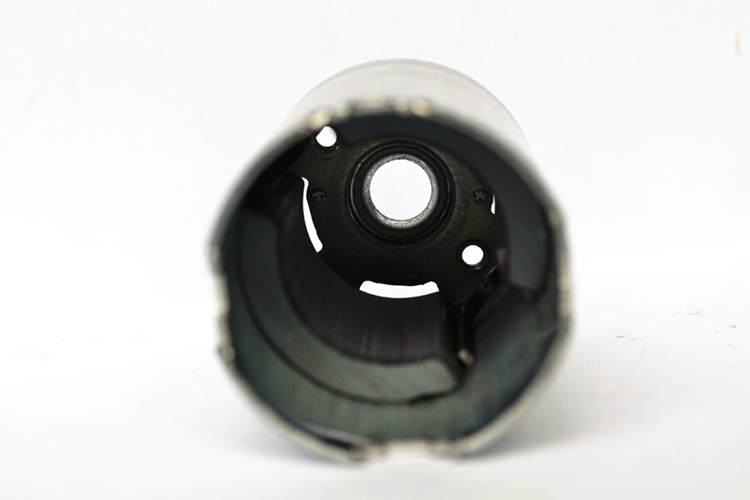

2) Designed & supplied by CHINABASE, NdFeb magnetic tile and Anti interference magnetic ring.
3) Smaller size, Bigger torque, Bigger cogging torque.

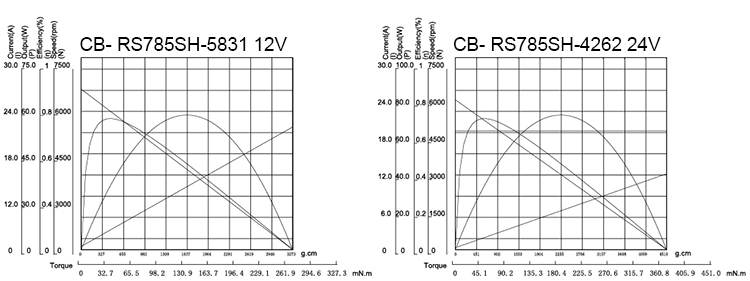

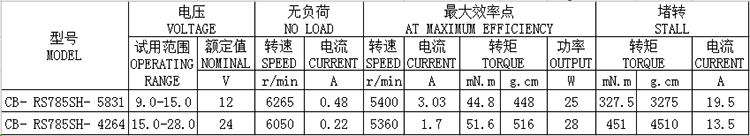

Product Description


1)Type:Brushed DC Motor
2)Motor Type:Brushed
3)Construction:Permanent Magnet
4)Torque(AT MAXIMUM EFFICIENCY):448g.cm
5)Speed(AT MAXIMUM EFFICIENCY):5400rpm
6)Continuous Current(AT MAXIMUM EFFICIENCY):3.03A
7)Output Power(AT MAXIMUM EFFICIENCY):25W
8)Voltage(NOMINAL):12V
9)Efficiency:IE 1
10)Certification:ROHS
Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.

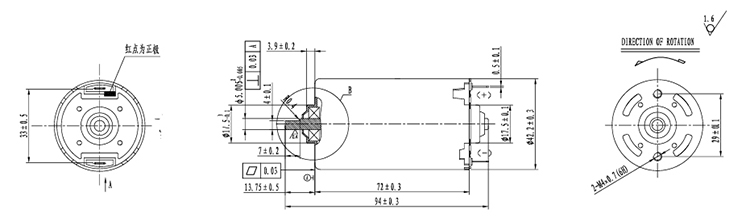

Product Information

Diameter of motor:42mm
Length of motor:72mm
Color: Silver



Quotation Information


Price Range:$1-$10 per piece
Minimum Order Quantity:1000 pieces
Lead time:30 days
