68BLW series outer rotor brushless DC motor with built-in driver

Model No.:
brushless DC motor
Features:
brushless DC motor



Product Features


1) Outer rotor DC motor.
2) Brushless DC motor.



Product Description


1)Motor specification:

Model
CB68BLW54-24V-3536A
CB68BLW49-24V-2060A
Number of poles
1212
Number of phase
3
3
Rated voltage   VDC
24V
24V
Rated speed     RPM
3500
2000
Rated torque    N.m
0.12
0.3
Rated power   W
3653
Peak current   A
69
Line to line resistance  ohms@20
0.40.9
Line to line inductance   mH
0.562.1

Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.



Product Information

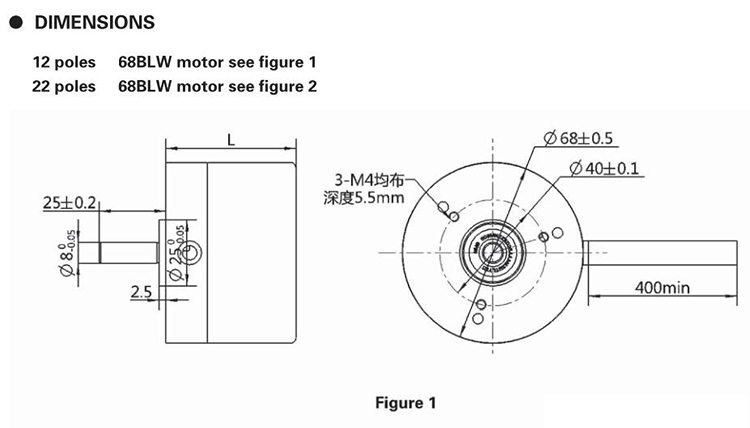

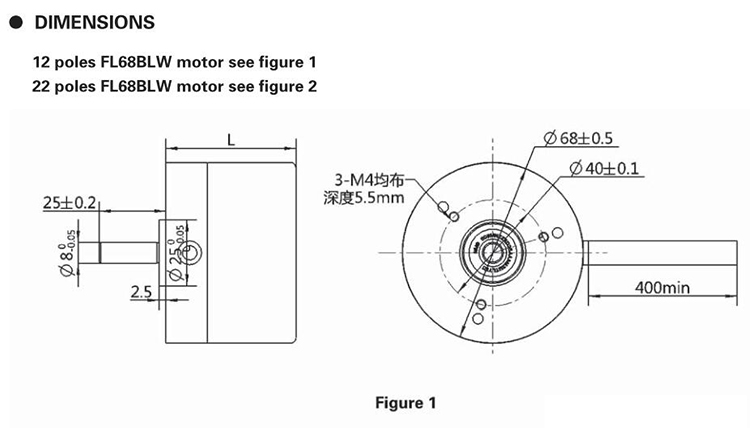

Diameter of motor:68mm
Length of motor:54mm
Color: siliver



Quotation Information


Price Range:$32 - $59per piece
Minimum Order Quantity:200 pieces
Lead time:30 days
