42mm brushless DC motor with built-in driver

Model No.:
CB42BLS
Features:
42mm brushless DC motor with built-in driver



Product Features

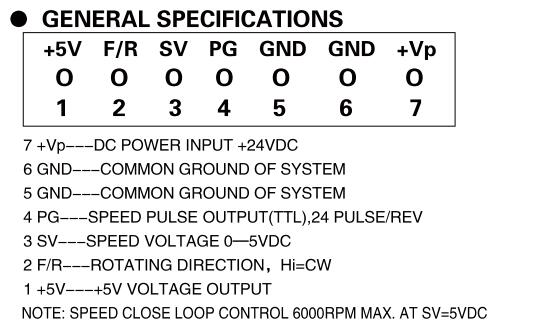

1) integrated electronics.



Product Description


1)Type:Brushless DC Motor
2)Motor Type:Brushless
3)Winding type:Delta
4)Hall effect angle:120degree electrical angle
5)Shaft run out:0.025mm
6)Radial play:0.02mm@450g
7)End play:0.08mm@450g
8)Max radial force:28N @ 20mm from the flange
9)Max axial force:10N
10)Insulation class:Class B

11)Dielectric strength:500V AC for one minute

12)Insulation resistance:100MΩMin.,500VDC


Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.

Model
CB42BLS01-IE
CB42BLS02-IE
CB42BLS03-IE
Number of poles
8
Number of phase
3
Rated voltage   VDC
24
Rated speed  RPM
4000
4000
4000
Rated torque    N.m
0.0625
0.125
0.185
Rated power   W
26
52
78
Peak torque   N.m
0.16
0.39
0.7
Line to line resistance             ohms
1.5
0.8
0.43
Line to line inductance   mH
2.1
1.2
0.71
Toque constant             Nm/A
0.033
0.036
0.037
Back E.M.F      Vrms/KRPM
2.45
2.71
2.74
Rotor inertia           g.cm²
24
48
72
Body Length         mm
77
97
137



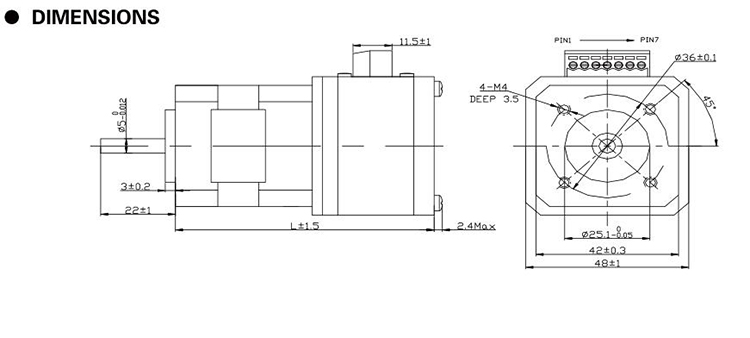

Product Information

Diameter of motor:57mm
Length of motor:90mm, 100mm, 139mm
Color: black



Quotation Information


Price Range:$42- $110 per piece
Minimum Order Quantity:50 pieces
Lead time:30 days
