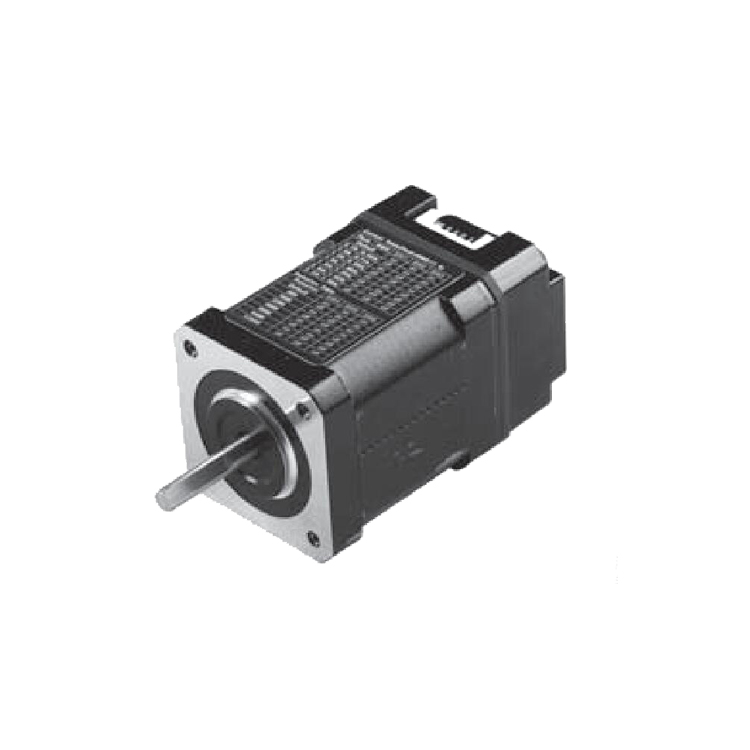

1.8° size 42mm hybrid stepping motor with built-in driver

Model No.:
hybrid stepping motor with built-in driver

Product Features

1) Large torque, high precision,smooth running.

Product Description

1)Step angle:1.8°
2)Step Angle accuracy:±5%(full step, no load)

3)Resistance accuracy:±10%(@20℃)

4)Inductance accuracy:±20%(1KHz)

5)Temperature Rise:80 ℃ Max.(Rated current, 2 phase on)

6)Ambient Temperture:-20℃-+50℃
7)Max radial force:28N at 20mm from the flange
8)Max axial force:10N


10)Dielectric strength:500V AC for one minute

11)Insulation resistance:100MΩMin.,500VDC

Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.

Item No.CB42STH33-1334A-IE2
Rated voltage     VDC
Current/ Phase    A
Resistance/Phase  Ω2.1

Inductance/Phase  mH

Holding torque    kg-cm2.2

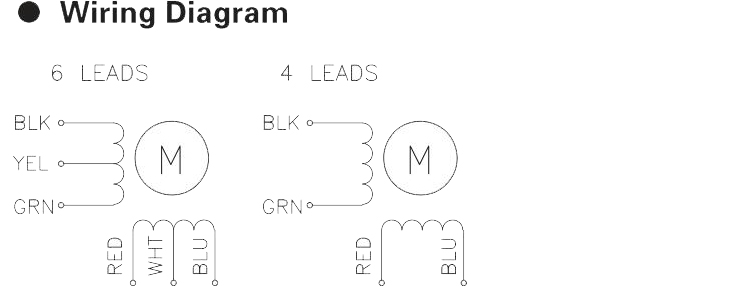

number of Leads4
Rotor Inertia     g.cm²35
Weight            kg0.22
Detent Torque     g-cm120
Length            mm33.5

Product Information

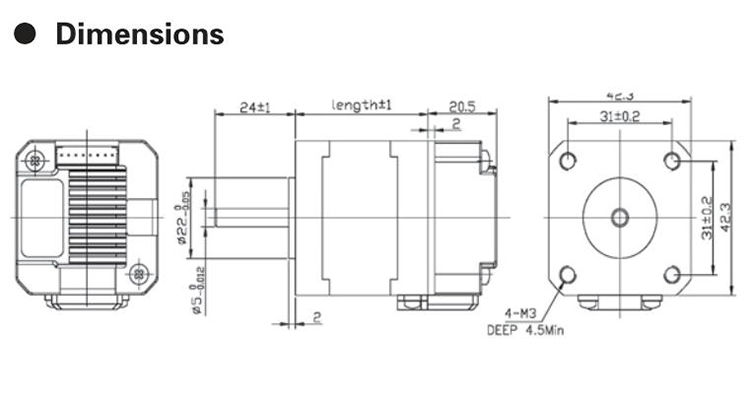

Diameter of motor:42mm
Length of motor:33.5mm
Color: Silver+black

Quotation Information

Price Range:$49 - $156 per piece
Minimum Order Quantity:100 pieces
Lead time:30 days
