Product Features
1) high torque, low noise.
Product Description
1)Type:brushless
2)Motor Type:Brushless
3)Winding type:Star
4)Hall effect angle:120degree electrical angle
5)Shaft run out:0.025mm
6)Radial play:0.025mm@460g
7)End play:0.025mm@4000g
8)Max radial force:115N @ 20mm from the flange
9)Max axial force:45N
10)Insulation class:Class B
11)Dielectric strength:500V DC for one minute
12)Insulation resistance:100MΩMin.,500VDC
Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.
| Model | Unit | FL57BLB40 | FL57BLB60 |
| Number of poles | 8 | ||
| Number of phase | 3 | ||
| Rated voltage VDC | 36 | ||
| Rated speed | RPM | 3000 | 3000 |
| Rated torque | N.m | 0.3 | 0.45 |
| Rated power | W | 94 | 141 |
| Peak torque | N.m | 0.9 | 1.35 |
| Peak current | A | 12.3 | 18.2 |
| Line to line resistance | ohms@20℃ | 1.2 | 0.8 |
| Line to line inductance mH | mH | 1.2 | 0.8 |
| Toque constant | Nm/A | 0.076 | 0.076 |
| Back E.M.F | Vrms/KRPM | 5.6 | 5.6 |
| Rotor inertia | g.cm² | 210 | 320 |
| Body Length | mm | 76 | 96 |
| Weight | Kg | 0.8 | 1 |
Product Information

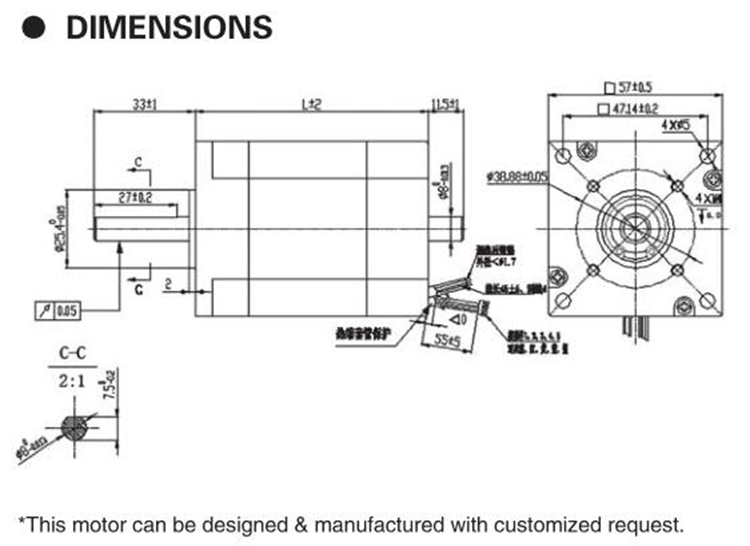

Diameter of motor:57mm
Length of motor:76mm, 96mm
Color: black
Quotation Information
Price Range:$42- $98 per piece
Minimum Order Quantity:50 pieces
Lead time:30 days
