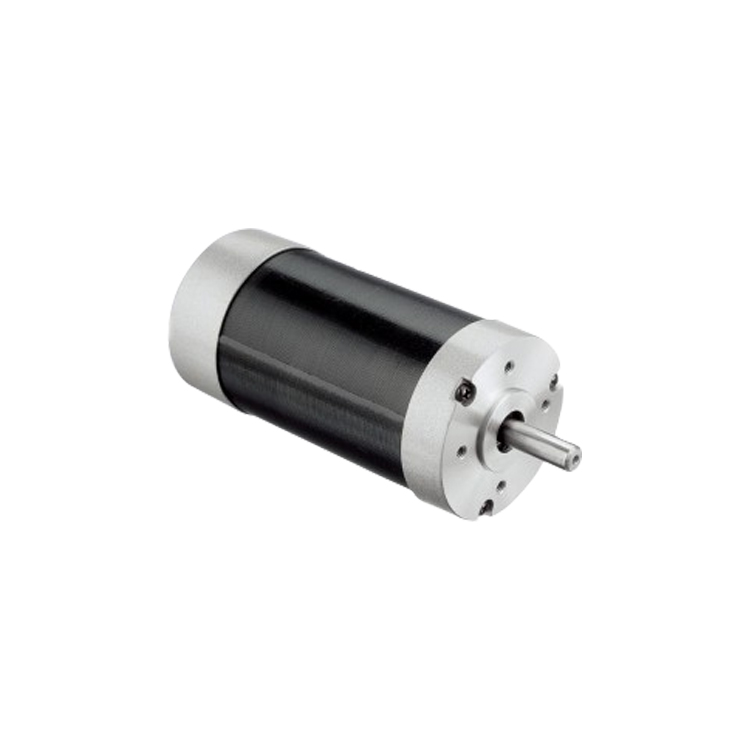

36v brushless DC motor

Model No.:
Brushless DC motor

Product Features

A brushless DC motor is a synchronous electric motor which is powered by direct-current electricity (DC) and which has an electronically controlled commutation system, instead of a mechanical commutation system based on brushes. In such motors, current and torque, voltage and rpm are linearly related.

Product Description

1)Type:Brushless DC Motor
2)Motor Type:Brushless
3)Winding type:Delta
4)Size:57 mm
5)N° of pole:4
6)N° of phase:3
7)Rated Voltage:36 V
8)Rated Speed:4000 RPM
9)Rated Torque:0.32 Nm
10)Max Peak Torque:0.98 Nm

11)Torque Constant:0.063 Nm/A

12)Line to Line Resistance:0.45 Ω

13)Line to Line inductance:1.4 mH

14)Max Peak Current:16.5 A

15)Rotor Inertia:173 g-cm²

16)Weight:1 Kg

Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.

Product Information

Diameter of motor:57mm
Length of motor:94mm
Color: Silver+black

Quotation Information

Price Range:$16 - $48 per piece
Minimum Order Quantity:100 pieces
Lead time:30 days
