Product Features
1) Planetary reducer.
2) Stable running.
3) Long service life.
Product Description
1)Motor specification:
| Model | CB60STH45-2008AF | CB60STH56-2008AF |
| Number of poles | 4 | 4 |
| current/ phase | 2.8A | 2.8A |
| Rated voltage VDC | 2.1V | 2.52V |
| resistance/ phase | 0.75 | 0.9 |
| inductance/ phase | 2 | 3.6 |
| holding torque kg.cm | 11 | 16.5 |
| number of leads | 8 | 8 |
| Rotor inertia | 275 | 300 |
2)Gearbox specification:
| Ration | 3.6 | 4.3 | 13 | 15 | 18 | 23 | 47 | 55 | 65 | 77 |
| No. of gear trains | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 |
| Length mm | 37.8 | 37.8 | 49.4 | 49.4 | 49.4 | 49.4 | 60.8 | 60.8 | 60.8 | 60.8 |
Max rated torque | 9 | 9 | 21 | 21 | 21 | 21 | 30 | 30 | 30 | 30 |
| short time permissible torque | 27 | 27 | 63 | 63 | 63 | 63 | 90 | 90 | 90 | 90 |
| Rated Torque N.m | 0.016 | 0.023 | 0.056 | 0.075 | 0.11 | 0.18 | 0.25 | 0.36 | 0.50 | 0.60 |
Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.
Product Information

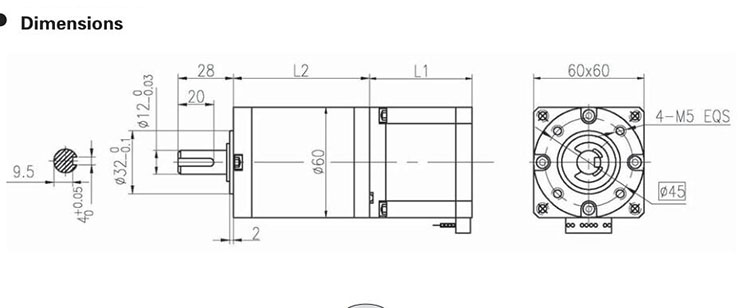

Diameter of gear box:60mm
Length of motor:47&56mm
Color: black
Quotation Information
Price Range:$40 - $92per piece
Minimum Order Quantity:200 pieces
Lead time:30 days
