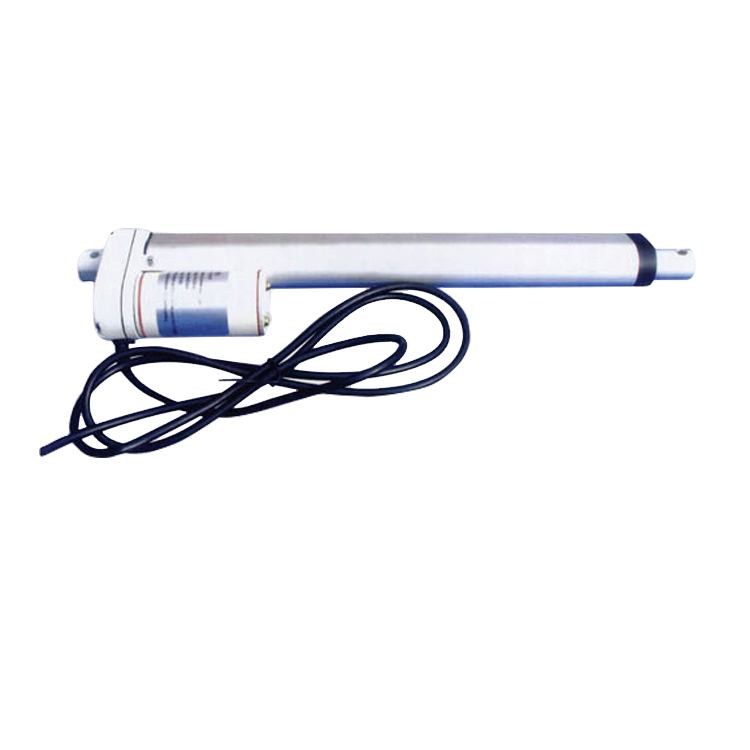

12v linear actuator

Model No.:
CB-LA-003
Features:
Large trust 12v linear actuator



Product Features


1) This model is our standard linear actuator capable of producing medium to high amounts of force

2) It is versatile, powerful, reliable and is perfect for almost any industry.

3) It is popular in marine, automotive manufacturing and home automation as well as industrial equipment and hobby design

4) It can be combined with any of our control boxes, rocker switches and designated mounting brackets



Product Description


1) Voltage:12v/24v DC

2) Stroke:100mm, 150mm, 200mm, 250mm,300mm, 350mm, 400mm customized

3) Force:250N/500N/800N optional

4) Rated speed:30mm/s(250N)   15mm/s(500N)    10mm/s(800N)

5) Ambient temperature:-25°C-65°C

6) Protection:IP54

7) Limit switches: yes, but factory setting can not be changed after delivery

8) Low noise, the rate of the noise will be less than:53dB(A)

9) Application:Furniture, office, exercising area, beauty area

10) Advantage: Large trust, small noise, and small installation dimension



Product Information


Length: 535mm

Weight: 1.5kg

Color: black



Quotation Information


Price Range: $18- $45

Minimum Order Quantity: 100 pieces

Lead Time: 20 days
