Product Features

1) Suitable for Hair Clipper or Radio Control Model.
2) With NdFeb magnetic tile and Anti interference magnetic ring.
3) Smaller size, Bigger torque, Bigger cogging torque.

Product Description

1)Type:DC Motor
2)Motor Type:Brushed
3)Construction:Permanent Magnet

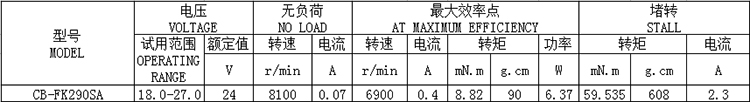

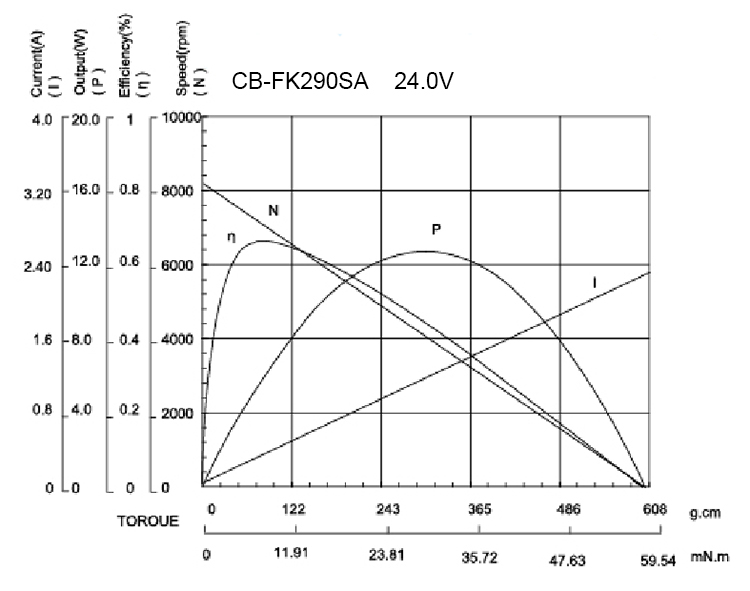

4)Torque(AT MAXIMUM EFFICIENCY):8.82mN.m
5)Speed(AT MAXIMUM EFFICIENCY):6900rpm
6)Continuous Current(AT MAXIMUM EFFICIENCY):0.4A
7)Output Power(AT MAXIMUM EFFICIENCY):6.37W
8)Voltage(NOMINAL):24V
9)Efficiency:IE 1
10)Certification:ROHS
11)Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.

Product Information

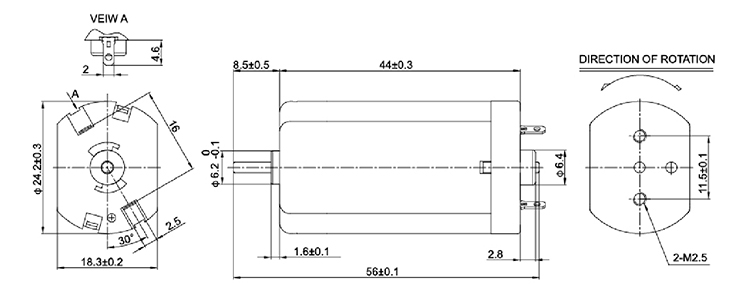

Diameter of motor:24.2mm
Length of motor: 44mm
Color: Sliver

Quotation Information

Price Range:$1 - $5 per piece
Minimum Order Quantity:1000 pieces
Lead time:30 days
