Product Features
1) high torque, low speed, low noise.
Product Description
1)Type:brushless
2)Motor Type:Brushless
3)Winding type:Star
4)Hall effect angle:120degree electrical angle
5)Shaft run out:0.05mm
6)Radial play:0.02mm@450g
7)End play:0.08mm@450g
8)Max radial force:115N @ 10mm from the flange
9)Max axial force:45N
10)Insulation class:Class B/F
11)Dielectric strength:500V AC for one minute
12)Insulation resistance:100MΩ,500VDC
Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.
| Model | Unit | FL150BL32-24v-555A | FL150BL46-48v-4140A |
| Number of poles | 28 | ||
| Number of phase | 3 | ||
| Rated voltage VDC | 24v&48v | ||
| Rated speed | RPM | 500 | 350 |
| Rated torque | N.m | 1.0 | 3.6 |
| Rated power | W | 55 | 140 |
| Peak torque | N.m | 3.0 | 10.8 |
| Peak current | A | 10 | 13 |
| Line to line resistance | ohms@20℃ | 0.85 | 1.25 |
| Line to line inductance mH | mH | 3.0 | 8.2 |
| Toque constant | mNm/A | 315 | 831 |
| Back E.M.F | Vrms/KRPM | 23.3 | 61.5 |
| Rotor inertia | g.cm² | 1800 | 6000 |
| Body Length | mm | 32 | 46 |
| Weight | Kg | 1.4 | 4.1 |
Product Information

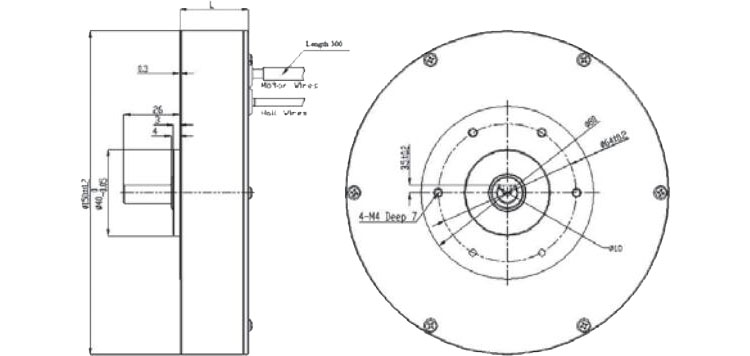

Diameter of motor:150mm
Length of motor:32mm, 46mm
Color: black
Quotation Information
Price Range:$56- $110 per piece
Minimum Order Quantity:50 pieces
Lead time:30 days
