Product Features
1) Planetary reducer.
2) Stable running.
3) Long service life.
Product Description
1)Motor specification:
| Model | CB57BL02-24V-1200 | CB57BL02-24V-2000 |
| Number of poles | 4 | 4 |
| Number of phase | 3 | 3 |
| Rated voltage VDC | 24V | 24V |
| Rated speed RPM | 1200 | 2000 |
| Rated torque N.m | 0.30 | 0.30 |
| Rated power W | 40 | 60 |
| Peak current A | 7.9 | 13.1 |
| Line to line resistance ohms | 2.1 | 0.95 |
| No-load speed r/min | 2000 | 3000 |
2)Gearbox specification:
| Ration | 3.6 | 4.25 | 13 | 15 | 18 | 23 | 47 | 55 | 65 | 77 |
| No. of gear trains | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 |
| Length mm | 34.5 | 34.5 | 45.8 | 45.8 | 45.8 | 45.8 | 57.1 | 57.1 | 57.1 | 57.1 |
| CB57BL02-24V-1200 | ||||||||||
No-load speed | 556 | 471 | 154 | 133 | 111 | 87 | 43 | 36 | 31 | 26 |
| Rated speed RPM | 333 | 282 | 92 | 80 | 67 | 52 | 26 | 22 | 18 | 16 |
| Rated Torque N.m | 0.97 | 1.2 | 3.2 | 3.6 | 4.4 | 5.6 | 10 | 12 | 14 | 17 |
| CB57BL02-24V-2000 | ||||||||||
| No-load speed | 833 | 706 | 231 | 200 | 167 | 130 | 64 | 55 | 46 | 39 |
| Rated speed RPM | 556 | 471 | 154 | 133 | 111 | 87 | 43 | 36 | 31 | 26 |
| Rated Torque N.m | 0.97 | 1.2 | 3.2 | 3.6 | 4.4 | 5.6 | 10 | 12 | 14 | 17 |
Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.
Product Information

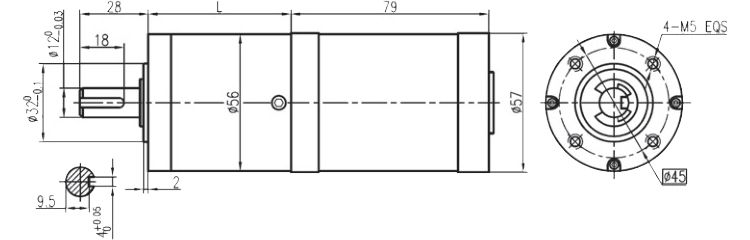

Diameter of gear box:57mm
Length of motor:79mm
Color: silver/black
Quotation Information
Price Range:$40 - $78per piece
Minimum Order Quantity:200 pieces
Lead time:30 days
