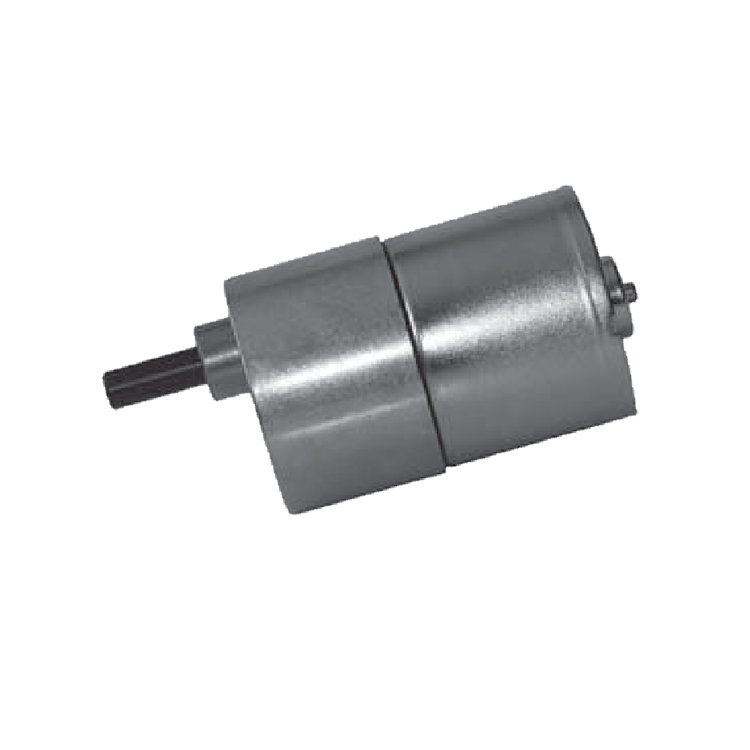

brushless DC planteary gear motor

Model No.:
CB-37JB10K
Features:
Brushless planetary gear motor



Product Features


1) Planetary reducer.
2) Stable running.
3) High efficiency.

4) Long service life.



Product Description


1)Motor specification:

Model
B3630-1247
B3630-2447
Number of poles
8
8
Number of phase
3
3
Rated voltage   VDC
12V
24V
Rated speed     RPM
3500
3500
Rated torque    g.cm
90
90
Rated power   W
3.2
3.2
Rated current   mA
820
410
No-load current  mA
270
140
No-load speed   r/min
4680
4680

2)Gearbox specification:

Ration
6
10
18
30
50
75
100
150
200
250
No. of gear trains
2
2
3
3
4
4
4
55
5
Length  mm
21.5
21.526.526.5
29
29
2931.5
31.5
31.5

B3630-1247

No-load speed

780
468
260
156
94
62
47
31
23
19
Rated speed RPM
583
350
194
117
70
47
35
23
18
14
Rated Torque N.m
0.043
0.071
0.120.19
0.29
0.43
0.57
0.78
11

B3630-2447


No-load speed
833
612
200
157
125
53
42
33
25
14
Rated speed RPM
583
428
140
110
87
375
29
23
18
9.9
Rated Torque N.m
0.043
0.071
0.12
0.19
0.29
0.43
0.57
0.78
1
1

Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.

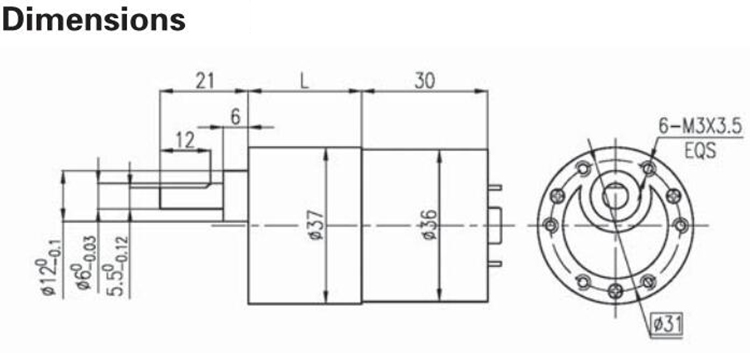

Product Information

Diameter of gear box:31mm
Length of motor:30mm
Color: siliver



Quotation Information


Price Range:$32 - $78per piece
Minimum Order Quantity:200 pieces
Lead time:30 days
