Product Features

1) Suitable for Rear-view mirror.
2) With NdFeb magnetic tile and Anti interference magnetic ring.
3) Smaller size, Bigger torque, Bigger cogging torque.

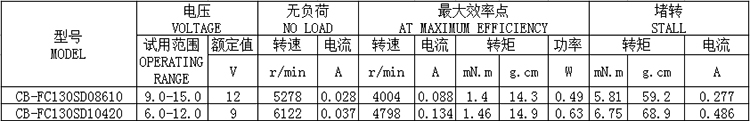

Product Description

1)Type:DC Motor
2)Motor Type:Brushed
3)Construction:Permanent Magnet
4)Torque(AT MAXIMUM EFFICIENCY):1.40mN.m
5)Speed(AT MAXIMUM EFFICIENCY):4004rpm
6)Continuous Current(AT MAXIMUM EFFICIENCY):0.088A
7)Output Power(AT MAXIMUM EFFICIENCY):0.49W
8)Voltage(NOMINAL):12V
9)Efficiency:IE 1
10)Certification:ROHS
11)Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.

Product Information

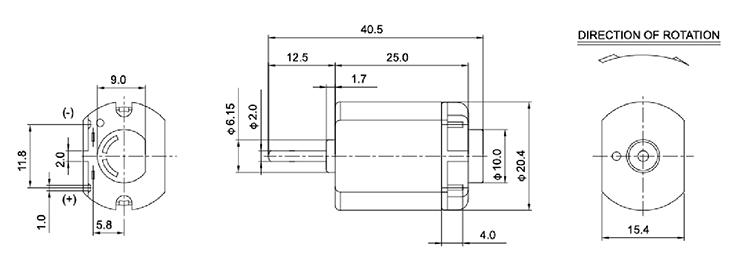

Diameter of motor:20.4mm
Length of motor: 26.7mm
Color: Sliver

Quotation Information

Price Range:$1 - $5 per piece
Minimum Order Quantity:1000 pieces
Lead time:30 days
