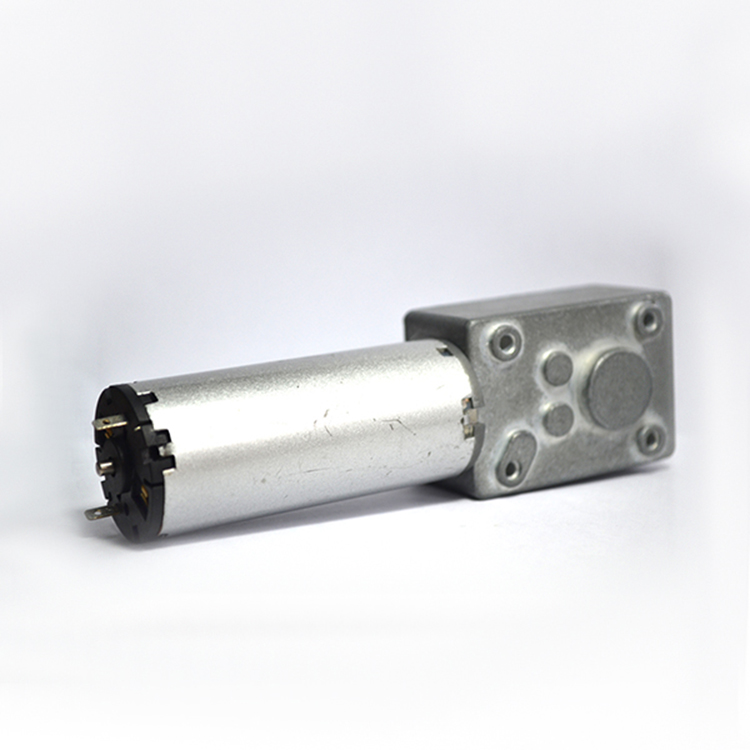

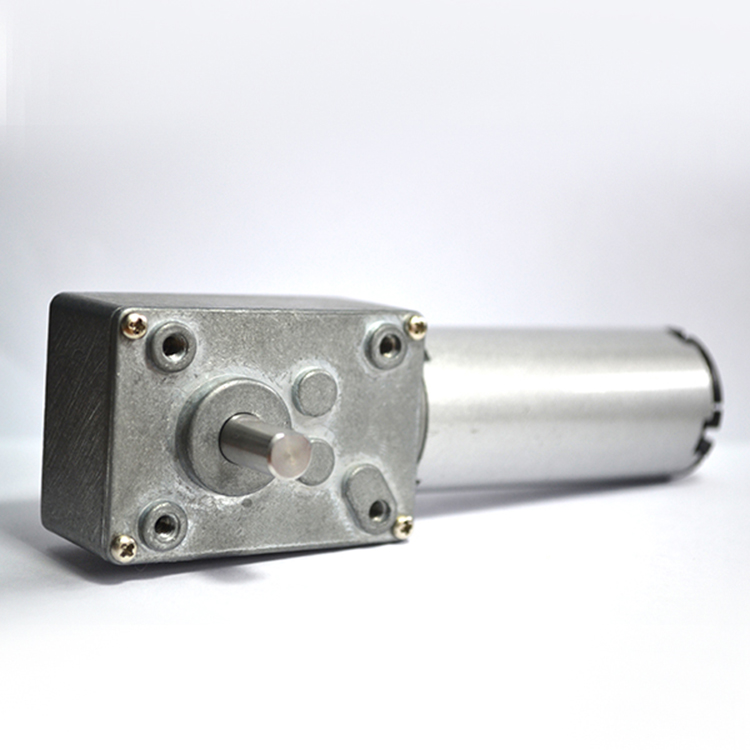

For Pharmacy Robot 24V 132rpm Motor with Gear Box

Model No.:
CB-40JFG3151



Product Features


1) Suitable for pharmacy robot machine.

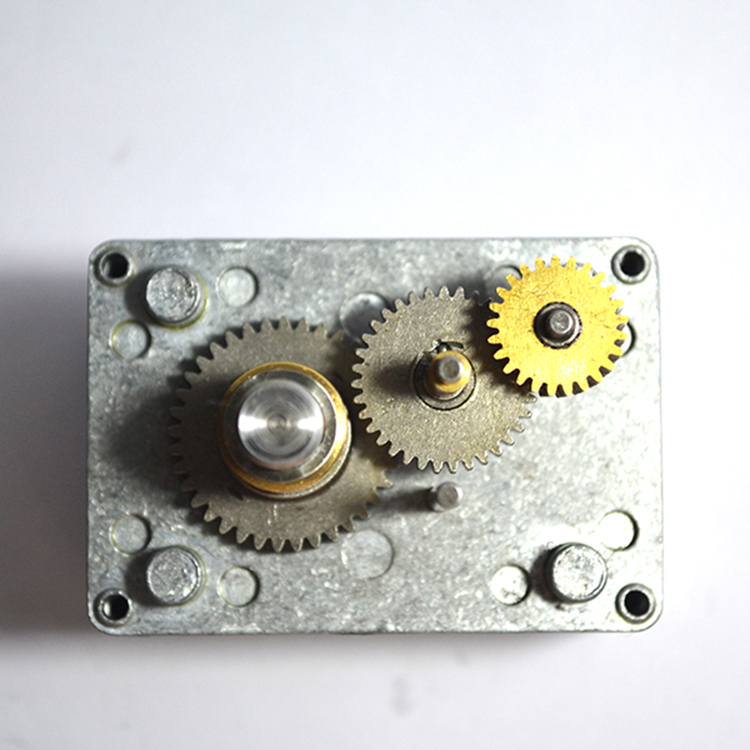

2) With Gearbox designed & supplied by CHINABASE, NdFeb magnetic tile and Anti interference magnetic ring.
3) Smaller size, Bigger torque, Bigger cogging torque.

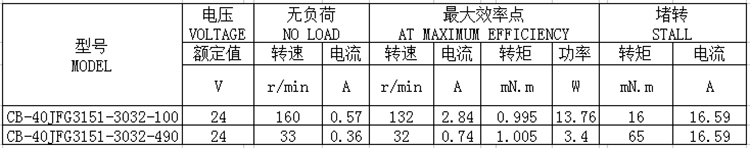

Product Description


1)Type:Gear box Motor
2)Motor Type:Brushed
3)Construction:Permanent Magnet
4)Torque(AT MAXIMUM EFFICIENCY):0.995mN.m
5)Speed(AT MAXIMUM EFFICIENCY):132rpm
6)Continuous Current(AT MAXIMUM EFFICIENCY):2.84A
7)Output Power(AT MAXIMUM EFFICIENCY):13.76W
8)Voltage(NOMINAL):24V
9)Efficiency:IE 1
10)Certification:ROHS
11)Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.

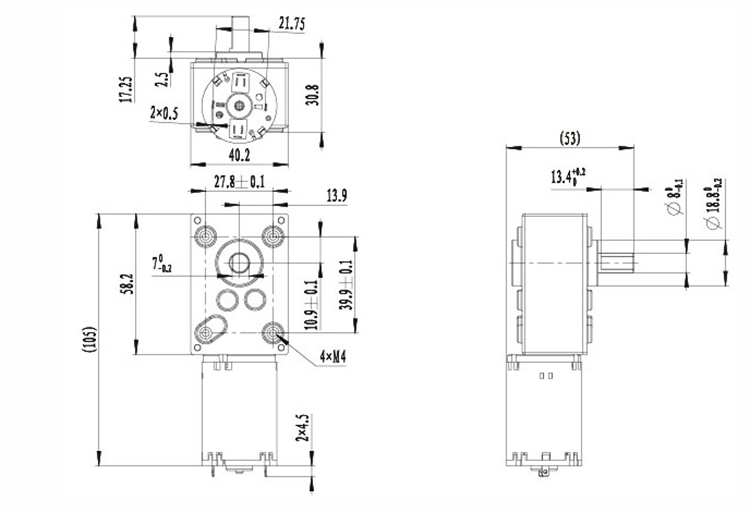

Product Information

Width of gear box:40.2mm
Diameter of motor:31mm
Length of motor: 46.8mm
Color: Silver



Quotation Information


Price Range:$5 - $20 per piece
Minimum Order Quantity:1000 pieces
Lead time:30 days
