Product Features

1) Suitable for Massager or Vibrator.
2) Designed & supplied by CHINABASE, NdFeb magnetic tile and Anti interference magnetic ring.
3) Smaller size, Bigger torque, Bigger cogging torque.

Product Description

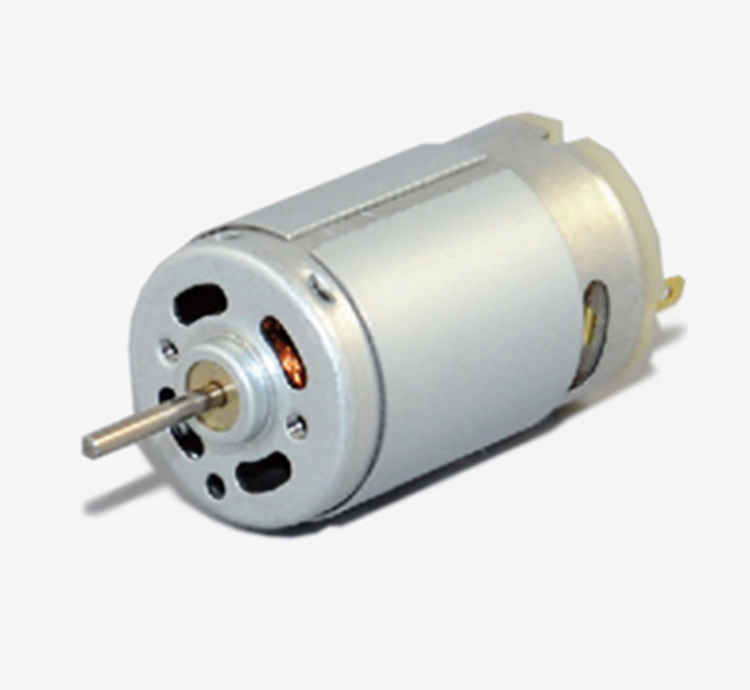

1)Type:Brushed DC Motor
2)Motor Type:Brushed
3)Construction:Permanent Magnet

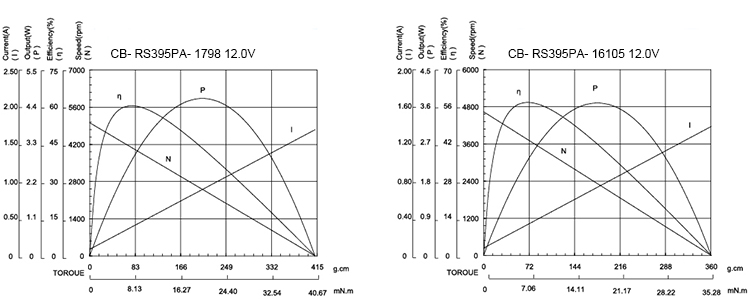

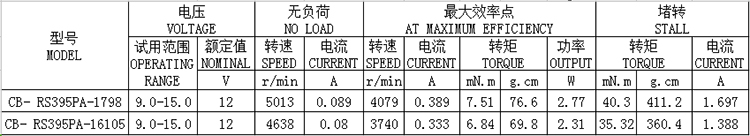

4)Torque(AT MAXIMUM EFFICIENCY):76.6g.cm
5)Speed(AT MAXIMUM EFFICIENCY):4079rpm
6)Continuous Current(AT MAXIMUM EFFICIENCY):0.389A
7)Output Power(AT MAXIMUM EFFICIENCY):2.77W
8)Voltage(NOMINAL):12V
9)Efficiency:IE 1
10)Certification:ROHS
Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.

Product Information

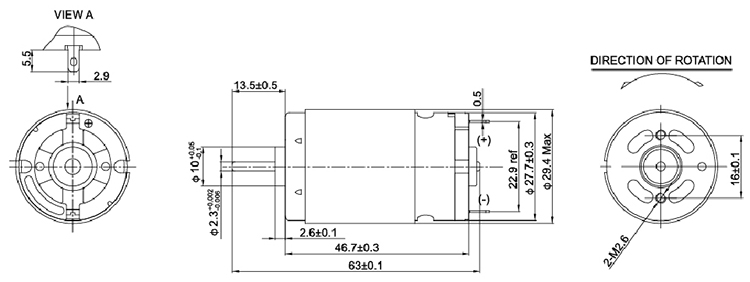

Diameter of motor:29.4mm
Length of motor:46.7mm
Color: Silver

Quotation Information

Price Range:$1-$10 per piece
Minimum Order Quantity:1000 pieces
Lead time:30 days
