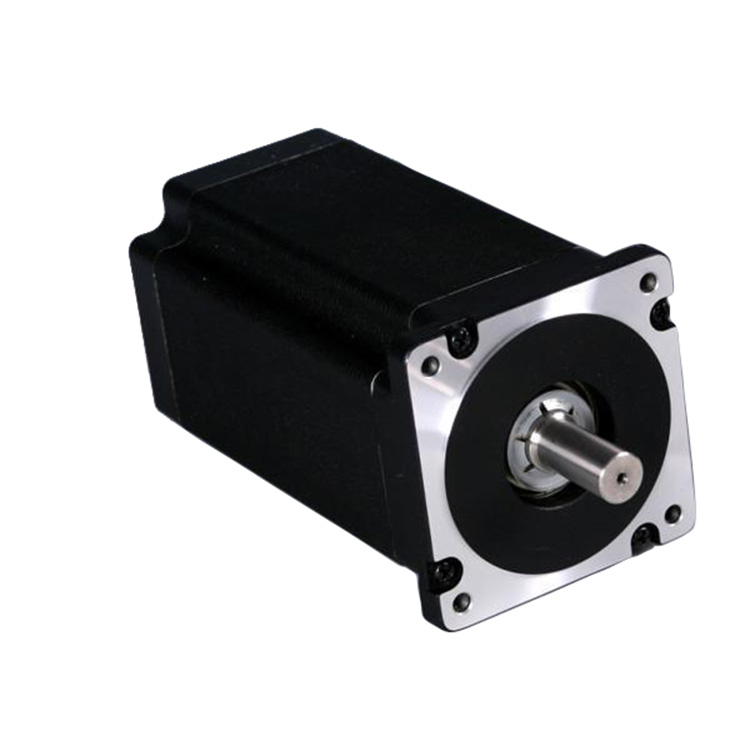

High torque 86mm brushless DC motor

Model No.:
CB-86BLS58
Features:
Large torque, high power density, strong overload capacity, low noise



Product Features


1) Large torque, high power density, strong overload capacity, low noise.



Product Description


1)Type:Brushless DC Motor
2)Motor Type:Brushless
3)Winding type:Star
4)Hall effect angle:120degree electrical angle
5)Shaft run out:0.05mm
6)Radial play:0.02mm@450g
7)End play:0.08mm@450g
8)Max radial force:220N @ 20mm from the flange
9)Max axial force:60N
10)Insulation class:Class F

11)Dielectric strength:500V DC for one minute

12)Insulation resistance:100MΩMin.,500VDC


Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.

Model
86BLS58
86BLS71
86BLS84
86BLS98
86BLS125
Number of poles
8
Number of phase
3
Rated voltage   VDC
48
Rated speed     RPM
3000
3000
3000
3000
3000
Rated torque    N.m
0.35
0.7
1.05
1.4
2.1
Rated power   W
110
220
330
440
660
Peak torque     N.m
1.05
2.1
0.7
1
1.27
Peak current   A
9.5
20
24
33
56
Line to line resistance ohms
0.9
0.34
0.2
0.16
0.10
Line to line inductance   mH
2.6
1
0.66
0.5
0.31
Toque constant  Nm/A
0.116
0.124
0.127
0.127
0.128
Back E.M.F      Vrms/KRPM
8.6
9
9.4
9.4
9.5
Rotor inertia      g.cm²
400
800
1200
1600
2400
Body Length     mm
43.6
53.6
73.6
93.6
113.6
Weight   Kg
1.6
2.12
2.64
3.15
4.2



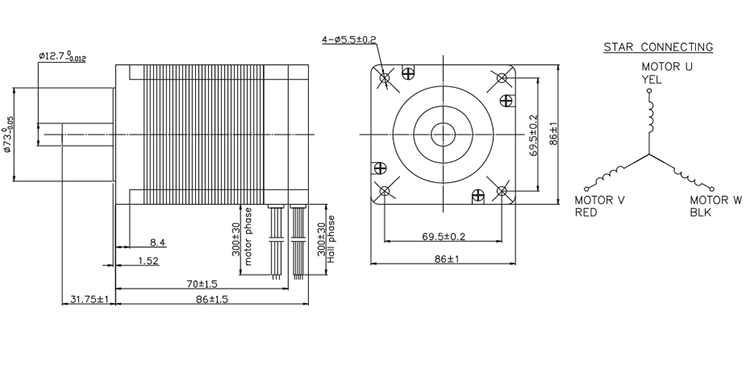

Product Information

Diameter of motor:86mm
Length of motor:56mm, 70mm,84, 96mm, 123mm
Color: black



Quotation Information


Price Range:$30- $80 per piece
Minimum Order Quantity:100 pieces
Lead time:30 days
