Product Features

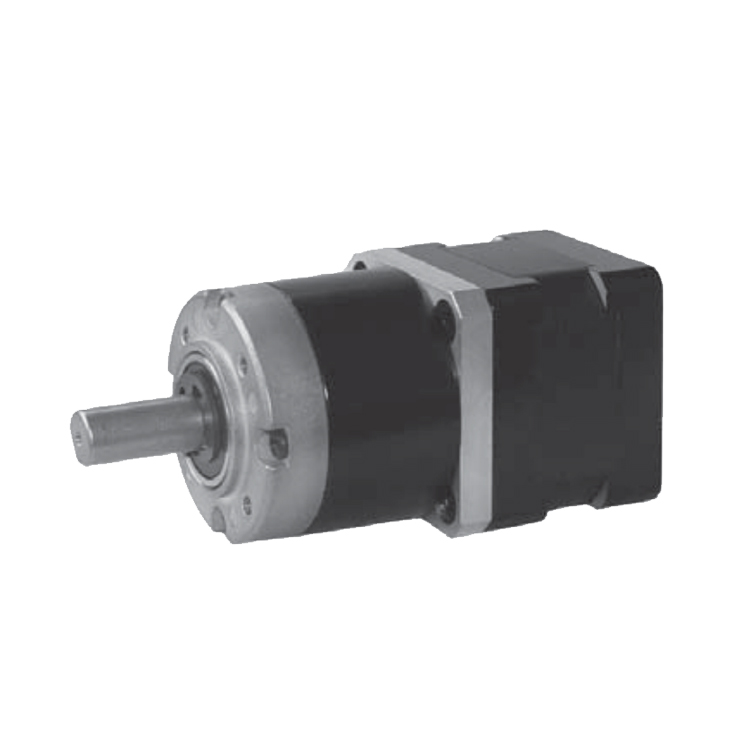

Planetary gear stepping motor.

Product Description

1)Ring material:metal
2)Bearing at output:Ball bearings
3)Max. Radial load:100N
4)Max shaft axial load
5)Radial play of shaft(near to flange):</=0.07mm
6)Axial play of shaft:</=0.3mm
7)Reduction ratio:3.71/5.18/14/19/27/51/71/100/139
8)Number of gear trains:1/2/3

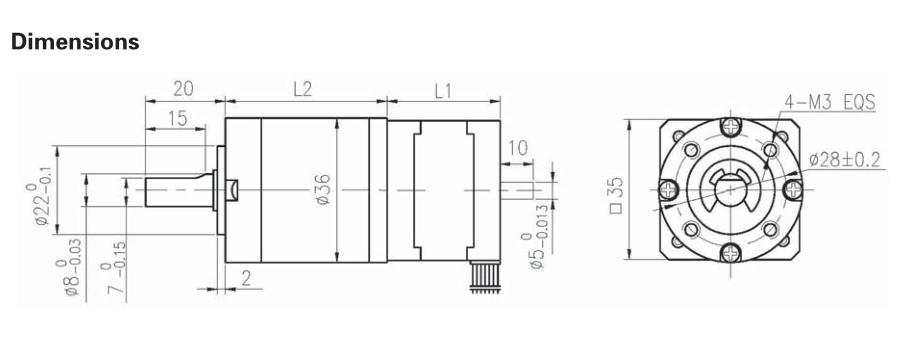

9)Length:27mm/34.2mm/41.1mm
10)Max rated torque:2.0N.m/3.0N.m/6.0N.m

11)Short time permission torque:6.0N.m/9.0N.m/18N..m

12)Efficiency:90%/81%/73%

Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.
