Product Features

1) Suitable for Oiling Machine & Scavenging Machine.
2) With Gearbox designed & supplied by CHINABASE, NdFeb magnetic tile and Anti interference magnetic ring.
3) Smaller size, Bigger torque, Bigger cogging torque.

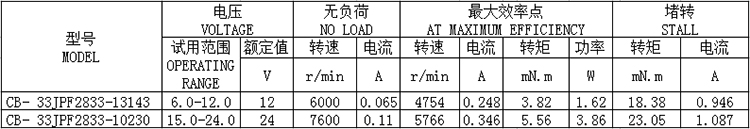

Product Description

1)Type:Gear box Motor
2)Motor Type:Brushed
3)Construction:Permanent Magnet

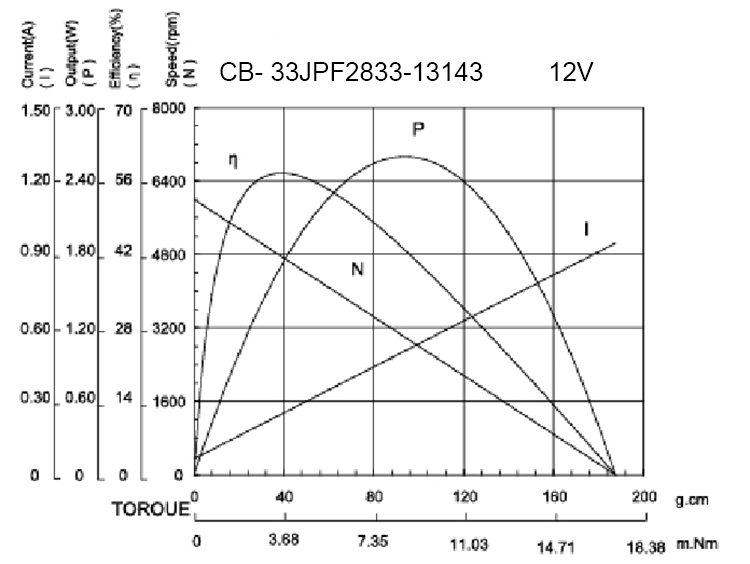

4)Torque(AT MAXIMUM EFFICIENCY):3.82mN.m
5)Speed(AT MAXIMUM EFFICIENCY):4754rpm
6)Continuous Current(AT MAXIMUM EFFICIENCY):0.248A
7)Output Power(AT MAXIMUM EFFICIENCY):1.62W
8)Voltage(NOMINAL):12V
9)Efficiency:IE 1
10)Certification:ROHS
11)Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.

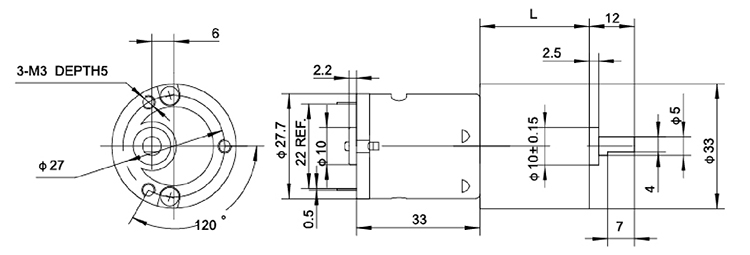

Product Information

Width of gear box:33mm
Diameter of motor:28mm
Length of motor: 33mm
Color: Silver

Quotation Information

Price Range:$5 - $20 per piece
Minimum Order Quantity:1000 pieces
Lead time:30 days
