Product Features
1) high speed, strong overload capacity, low noise.
Product Description
1)Type:brushless
2)Motor Type:Brushless
3)Winding type:Star
4)Hall effect angle:120degree electrical angle
5)Shaft run out:0.05mm
6)Radial play:0.02mm@450g
7)End play:0.08mm@450g
8)Max radial force:28N @ 20mm from the flange
9)Max axial force:12N
10)Insulation class:Class B/F/H
11)Dielectric strength:2500VDC, 3second, limit of 5mA.
12)Insulation resistance:100MΩ,500VDC
Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.
| Model | Unit | CB49BL180-320V | CB49BL90-110V |
| Number of poles | 2 | ||
| Number of phase | 3 | ||
| Rated voltage VDC | 320v | 110v | |
| Rated speed | RPM | 32000 | 13000 |
| Rated torque | mN.m | 300 | 140 |
| Rated power | W | 1000 | 200 |
| Peak torque | mN.m | 900 | 420 |
| Peak current | A | 12 | 7.6 |
| Line to line resistance | ohms@20℃ | 0.82 | 3.4 |
| Line to line inductance mH | mH | 0.9 | 2.5 |
| Toque constant | mNm/A | 89 | 74 |
| Back E.M.F | Vrms/KRPM | 6.6 | 5.5 |
| Rotor inertia | g.cm² | 340 | 110 |
| Body Length | mm | 180 | 90 |
| Weight | Kg | 2.2 | 1.1 |
Product Information

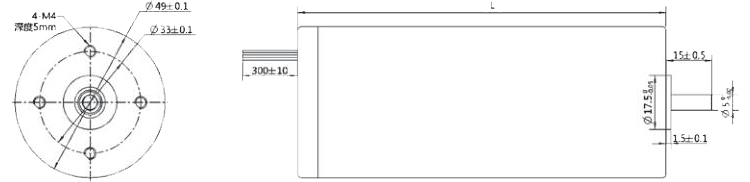

Diameter of motor:49mm
Length of motor:90mm
Color: silver
Quotation Information
Price Range:$48- $112 per piece
Minimum Order Quantity:50 pieces
Lead time:30 days
