Product Features

1) Suitable for Water drinking machine.
2) Designed & supplied by CHINABASE, NdFeb magnetic tile and Anti interference magnetic ring.
3) Smaller size, Bigger torque, Bigger cogging torque.

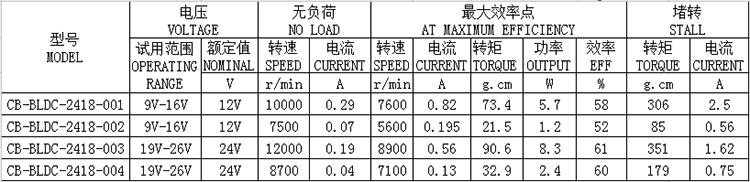

Product Description

1)Type:Brushless DC Motor
2)Motor Type:Brushless
3)Construction:Permanent Magnet
4)Torque(AT MAXIMUM EFFICIENCY):73.4g.cm
5)Speed(AT MAXIMUM EFFICIENCY):7600rpm
6)Continuous Current(AT MAXIMUM EFFICIENCY):0.82A
7)Output Power(AT MAXIMUM EFFICIENCY):5.7W
8)Voltage(NOMINAL):12V
9)Efficiency:IE 1

10)Certification:ROHS
Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.

Product Information

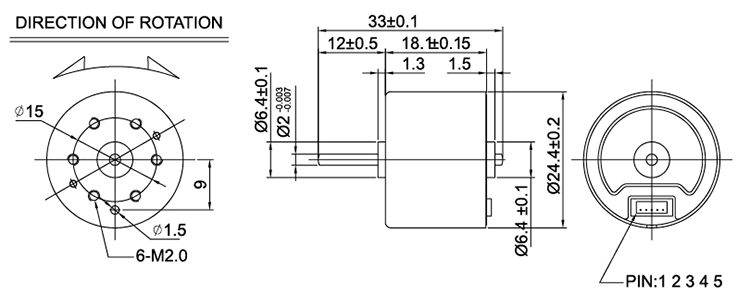

Diameter of motor:24mm
Length of motor:18mm
Color: Silver

Quotation Information

Price Range:$1 - $5 per piece
Minimum Order Quantity:1000 pieces
Lead time:30 days
