Product Features

1) Suitable for Beauty Equipment.

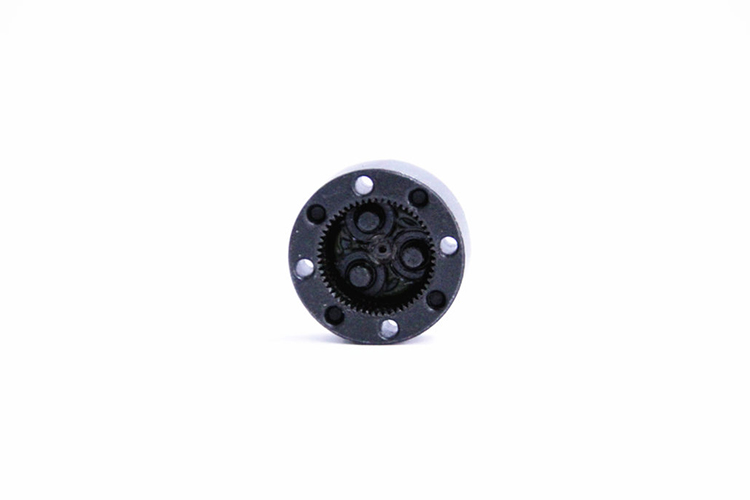

2) With Gearbox designed & supplied by CHINABASE, NdFeb magnetic tile and Anti interference magnetic ring.
3) Smaller size, Bigger torque, Bigger cogging torque.

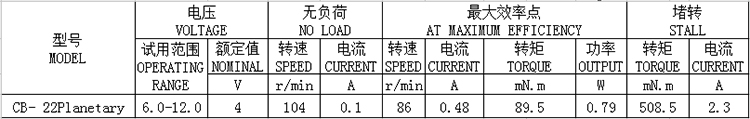

Product Description

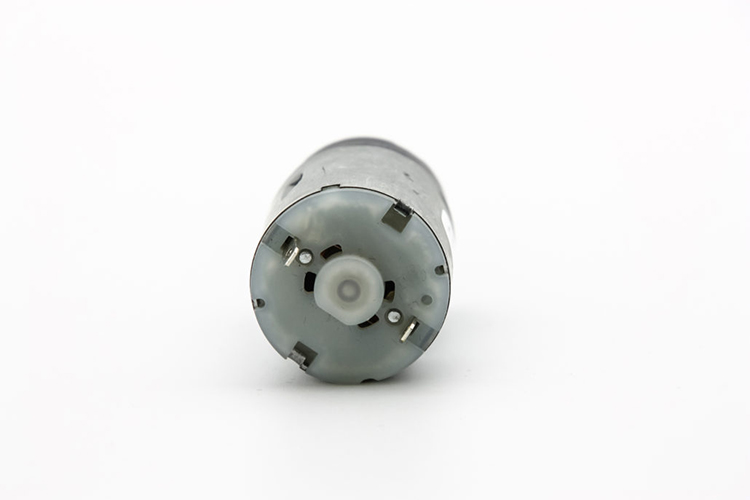

1)Type:Gear box Motor
2)Motor Type:Brushed
3)Construction:Permanent Magnet

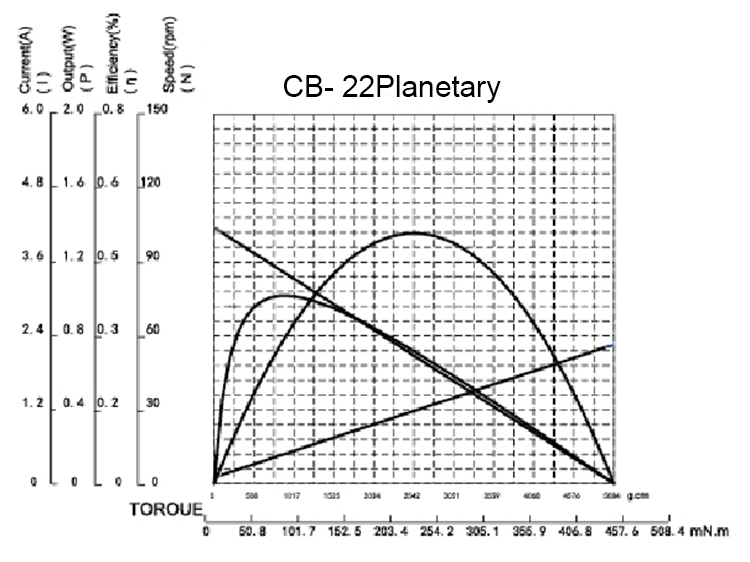

4)Torque(AT MAXIMUM EFFICIENCY):89.5mN.m
5)Speed(AT MAXIMUM EFFICIENCY):86rpm
6)Continuous Current(AT MAXIMUM EFFICIENCY):0.48A
7)Output Power(AT MAXIMUM EFFICIENCY):0.79W
8)Voltage(NOMINAL):4V
9)Efficiency:IE 1
10)Certification:ROHS
Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.

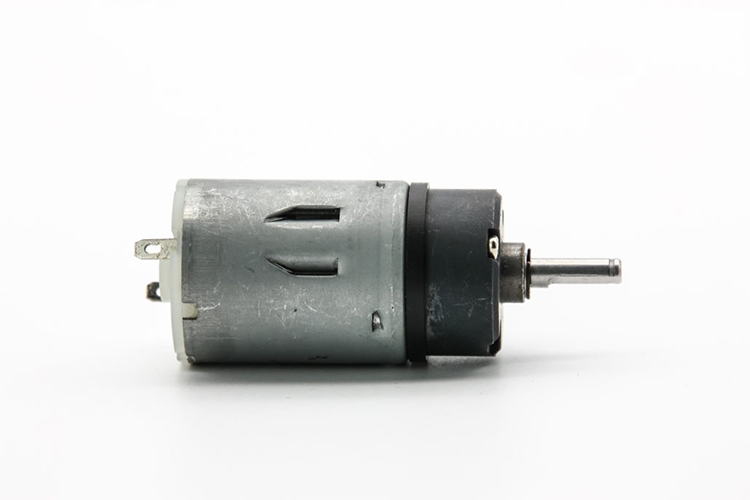

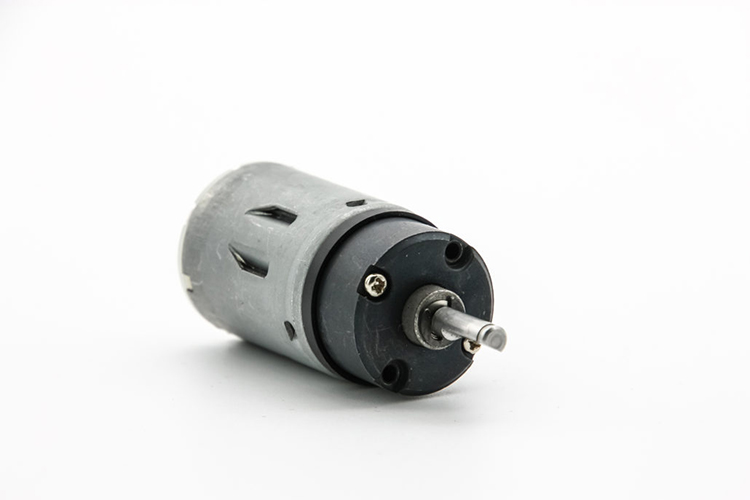

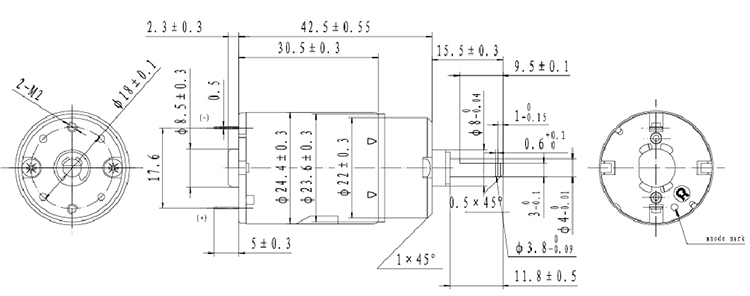

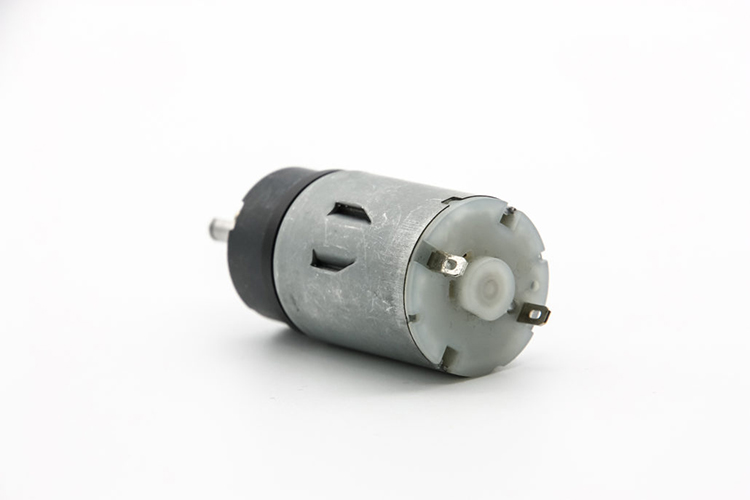

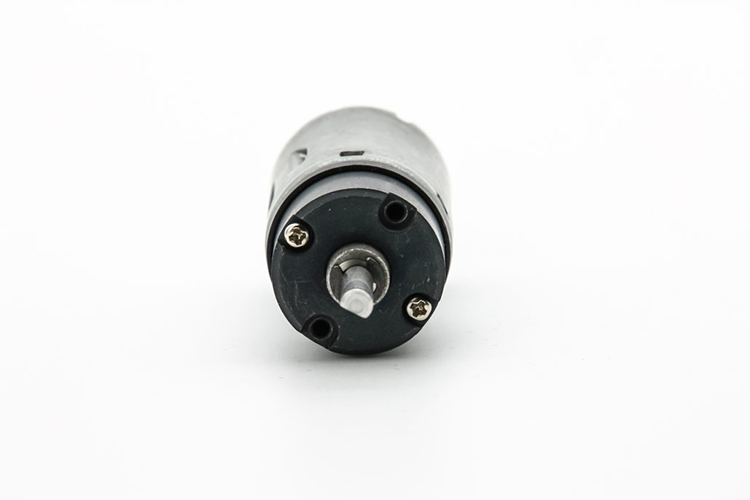

Product Information

Width of gear box:22mm
Diameter of motor:24mm
Length of motor: 42mm
Color: Silver

Quotation Information

Price Range:$5 - $20 per piece
Minimum Order Quantity:1000 pieces
Lead time:30 days
