56mm planetary gear stepping motor

Model No.:
planetary gear stepping motor

Product Features

1) planetary gear stepping motor.

2) permissible load range:9.0 N.m~30N.m.

Product Description

1)Type:stepping DC Motor
2)Ring material:metal
3)Max radial force:300N (12mm from the flange)

4)Max sahft axial load:200N

5)Radial play of shaft(near to flange≤0.08mm)

6)Axial play of shaft(≤0.4mm)

7)Shaft press fit force, max:300N
8)Permissible load range:9.0 N.m~30N.m.

Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.

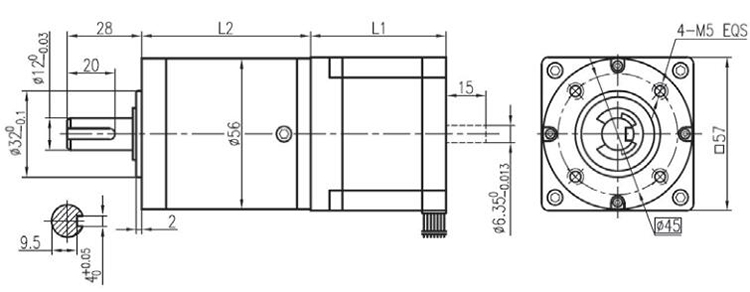

Product Information

Dimension of motor:37.8*51*57Length  mm
Length of motor:L1+L2mm
Color: black & silver

Quotation Information

Price Range:$31- $110 per piece
Minimum Order Quantity:100 pieces
Lead time:30 days
