Product Features

1) integrated electronics.

Product Description

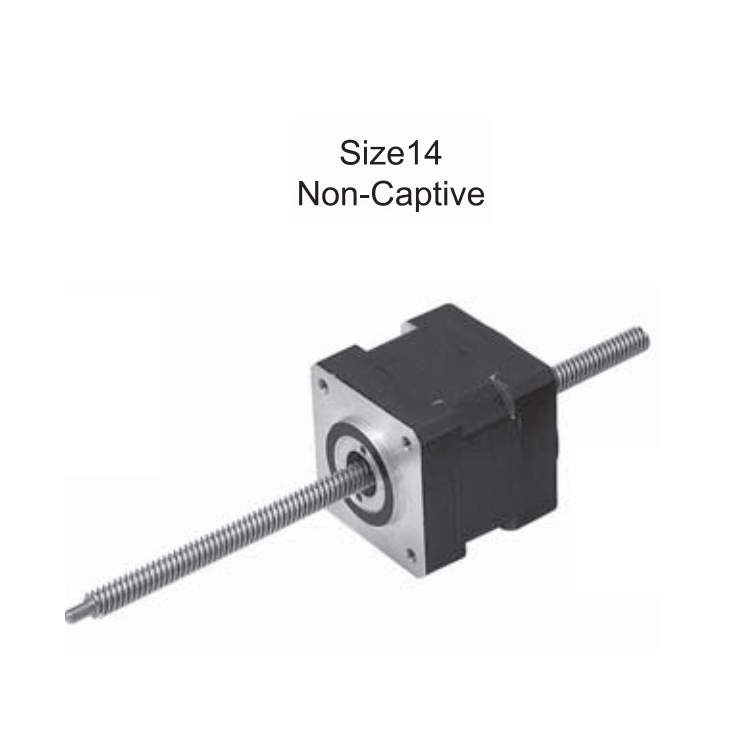

1)Type:hybrid linear stepper motor
2)Wiring:Bipolar
3)Rated voltage:2.33v/5v/12v
4)Rated current:2A/0.91A/0.38A
5)Resistance/phase:1.2Ω/5.5Ω/31.6Ω
6)Inductance/phase:1.95mH/7.63mH/
7)End play:0.08mm@450g
8)Max radial force:28N @ 20mm from the flange
9)Max axial force:10N
10)Insulation class:Class B

11)Dielectric strength:500V AC for one minute

12)Insulation resistance:100MΩMin.,500VDC

Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.

Product Information

Diameter of motor:28mm
Color: black

Quotation Information

Price Range:$18- $70 per piece
Minimum Order Quantity:100 pieces
Lead time:30 days
