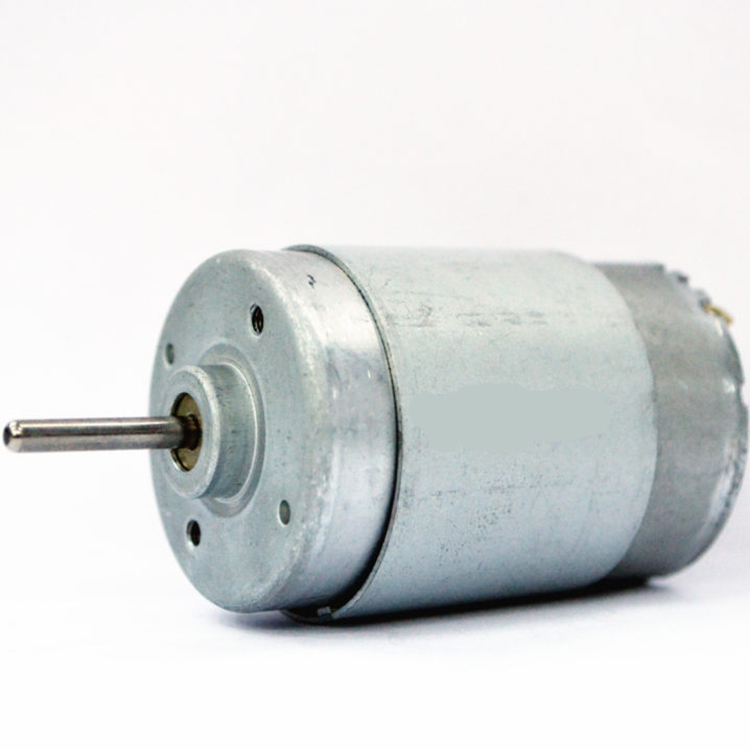

Product Features

1) Suitable for Car Antenna.
2) Designed & supplied by CHINABASE, NdFeb magnetic tile and Anti interference magnetic ring.
3) Smaller size, Bigger torque, Bigger cogging torque.

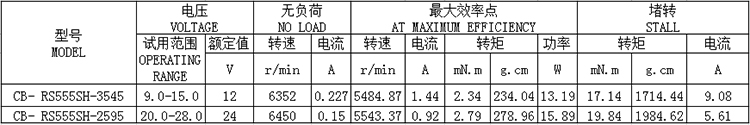

Product Description

1)Type:Brushed DC Motor
2)Motor Type:Brushed
3)Construction:Permanent Magnet
4)Torque(AT MAXIMUM EFFICIENCY):234.04g.cm
5)Speed(AT MAXIMUM EFFICIENCY):5485rpm
6)Continuous Current(AT MAXIMUM EFFICIENCY):1.44A
7)Output Power(AT MAXIMUM EFFICIENCY):13.19W
8)Voltage(NOMINAL):12V
9)Efficiency:IE 1
10)Certification:ROHS
11)Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.

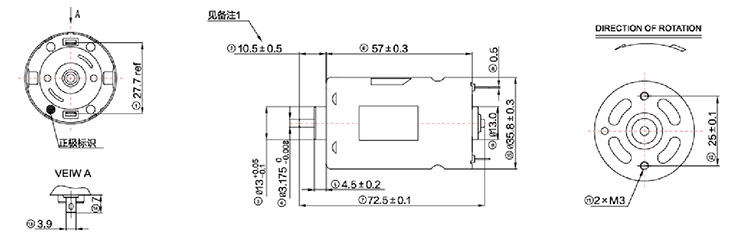

Product Information

Diameter of motor:35.8mm
Length of motor:57mm
Color: Silver

Quotation Information

Price Range:$1-$10 per piece
Minimum Order Quantity:1000 pieces
Lead time:30 days
