brushless DC motor

Model No.:
CB110BL
Features:
110mm brushless DC motor



Product Features


1) high power density, strong overload capacity, low noise.



Product Description


1)Type:Brushless DC Motor
2)Motor Type:Brushless
3)Winding type:Star
4)Hall effect angle:120degree electrical angle
5)Shaft run out:0.05mm
6)Radial play:0.02mm@450g
7)End play:0.08mm@450g
8)Max radial force:220N @ 20mm from the flange
9)Max axial force:60N
10)Insulation class:Class F

11)Dielectric strength:500V DC for one minute

12)Insulation resistance:100MΩMin.,500VDC


Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.

Model
Unit
FL110BL51
FL110BL68
Number of poles
8
Number of phase
3
Rated voltage   VDC
60
Rated speed
RPM
3000
3000
Rated torque
N.m
3
4.5
Rated power
W
942
1413
Peak torque
N.m
9
13.5
Peak current
A
68
110
Line to line resistance
ohms@20℃
0.069
0.046
Line to line inductance   mH
mH
0.42
0.283
Toque constant
Nm/A
0.134
0.123
Back E.M.F
Vrms/KRPM
9.9
9.12
Rotor inertia
g.cm²
4350
5800
Body Length
mm
102
119
Weight
Kg
4.65
6.5

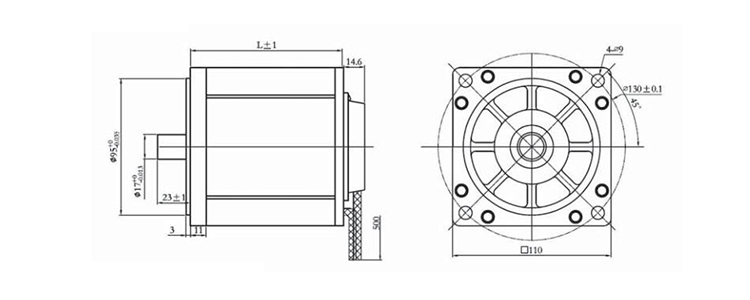

Product Information

Diameter of motor:110mm
Length of motor:102mm, 119mm
Color: black



Quotation Information


Price Range:$42- $110 per piece
Minimum Order Quantity:50 pieces
Lead time:30 days
