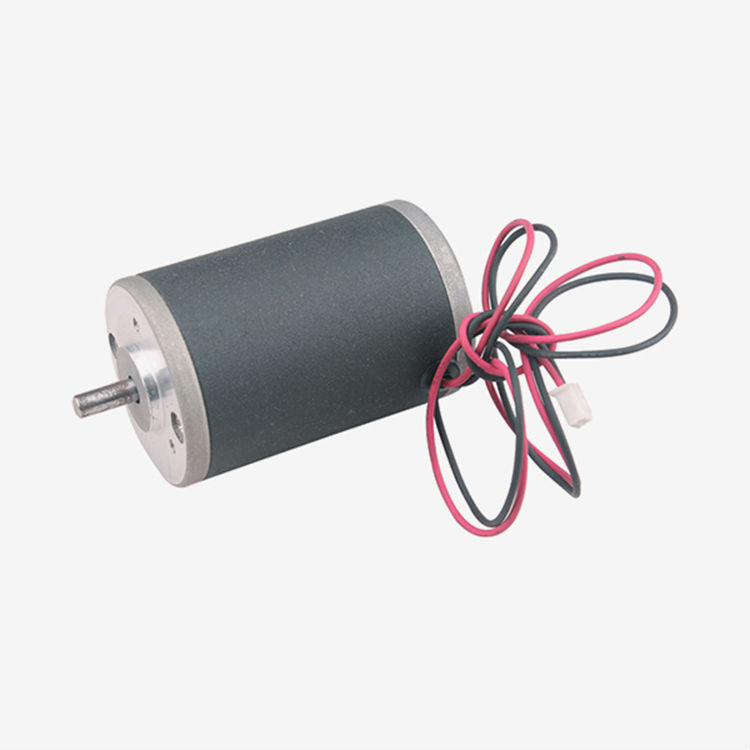

Product Features

1) Suitable for Water treatment equipments.

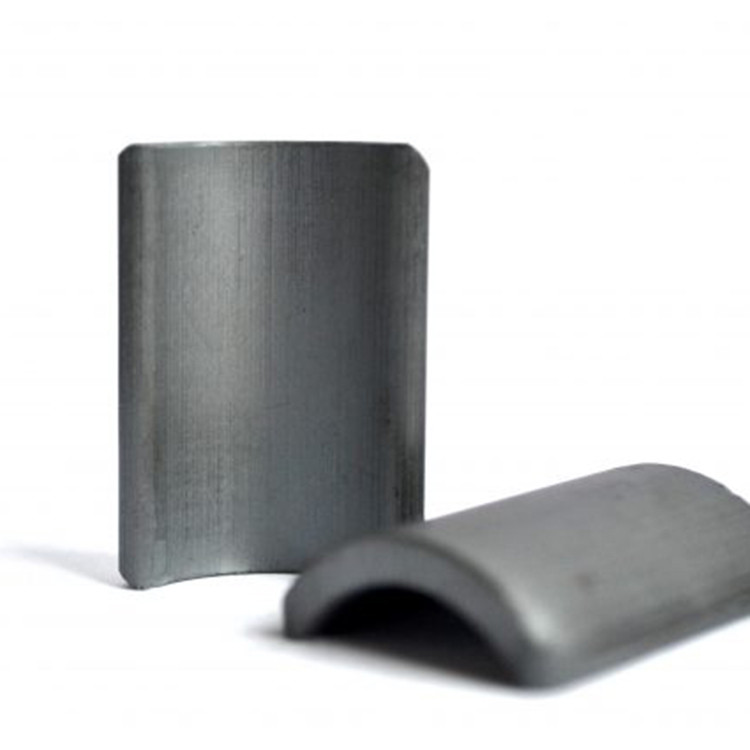

2) With NdFeb magnetic tile and Anti interference magnetic ring.
3) Smaller size, Bigger torque, Bigger cogging torque.

Product Description

1)Type:DC Motor
2)Motor Type:Brushed
3)Construction:Permanent Magnet

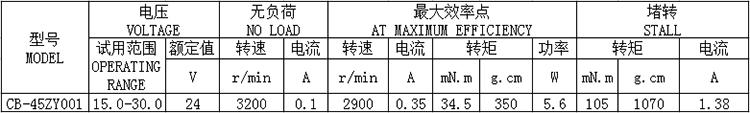

4)Torque(AT MAXIMUM EFFICIENCY):34.5mN.m
5)Speed(AT MAXIMUM EFFICIENCY):2900rpm
6)Continuous Current(AT MAXIMUM EFFICIENCY):0.35A
7)Output Power(AT MAXIMUM EFFICIENCY):5.6W
8)Voltage(NOMINAL):24V
9)Efficiency:IE 1
10)Certification:ROHS
11)Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.

Product Information

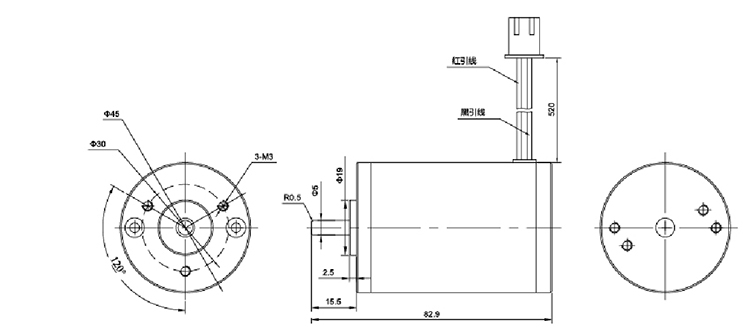

Diameter of motor:45mm
Length of motor: 82.9mm
Color: Black

Quotation Information

Price Range:$1 - $5 per piece
Minimum Order Quantity:1000 pieces
Lead time:30 days
