36mm BLDC planetary gear motor

Model No.:
CB-36BL3640
Features:
BLDC planetary gear motor



Product Features


1) Planetary reducer.
2) Stable running.
3) High efficiency.

4) Long service life.



Product Description


1)Motor specification:

Model
B3650-1253
B3630-2453
Number of poles
4
4
Number of phase
3
3
Rated voltage   VDC
12V
24V
Rated speed     RPM
5300
5300
Rated torque    g.cm
350
350
Rated power   W
14.4
16.2
Rated current   A
2.5
1.1
No-load current  mA
440
270
No-load speed   r/min
4000
4500

2)Gearbox specification:

Ration
3.7
5.2
14
19
27
51
71
100
139
181
No. of gear trains
1
1
2
2
2
3
3
33
4
Length  mm
26.5
26.533.633.6
33.6
40.5
40.540.5
40.5
47.4

B3640-1253

No-load speed

1429
1023
379
279
196
104
75
53
38
29
Rated speed RPM
1078
772
286
211
148
78
56
40
35
29
Rated Torque N.m
0.12
0.16
0.390.53
0.68
1.3
1.8
2.5
2.93

B3640-2453


No-load speed
1429
1023
379
279
196
104
75
53
38
29
Rated speed RPM
1213
869
321
237
167
88
63
45
39
32
Rated Torque N.m
0.12
0.16
0.39
0.53
0.68
1.3
1.8
2.5
2.9
3

Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.



Product Information

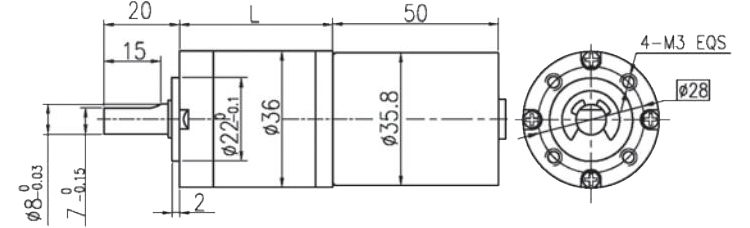

Diameter of gear box:36mm
Length of motor:50mm
Color: siliver/black



Quotation Information


Price Range:$32 - $78per piece
Minimum Order Quantity:200 pieces
Lead time:30 days
