36mm planetary gear stepping motor

Model No.:
CB35ST28-0504A
Features:
stepping motor



Product Features


1) planetary gearbox.
2) Stable running.

3) Long service life.



Product Description


1)Motor specification:

Model
CB35ST28-0504A
CB35ST36-1004A
Number of gear trains
12
Max rated torque2N.m
3N.m
Short time permissible torque6N.m
9N.m
Efficiency90%
81%
Backlash1 deg1.2deg
Length27mm34.2mm
Weight134g173

Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.



Product Information

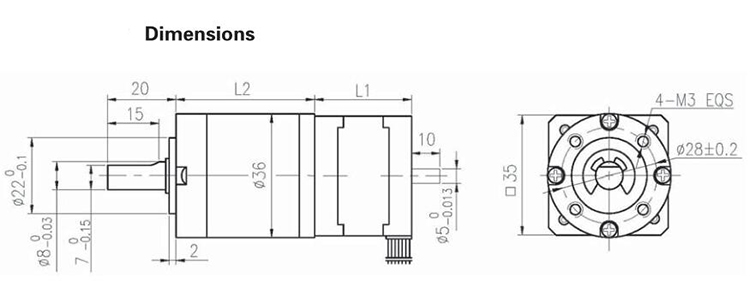

Diameter of gear box:36mm
Length of motor:27&34.2mm
Color: siliver/black



Quotation Information


Price Range:$60 - $110per piece
Minimum Order Quantity:100 pieces
Lead time:30 days
