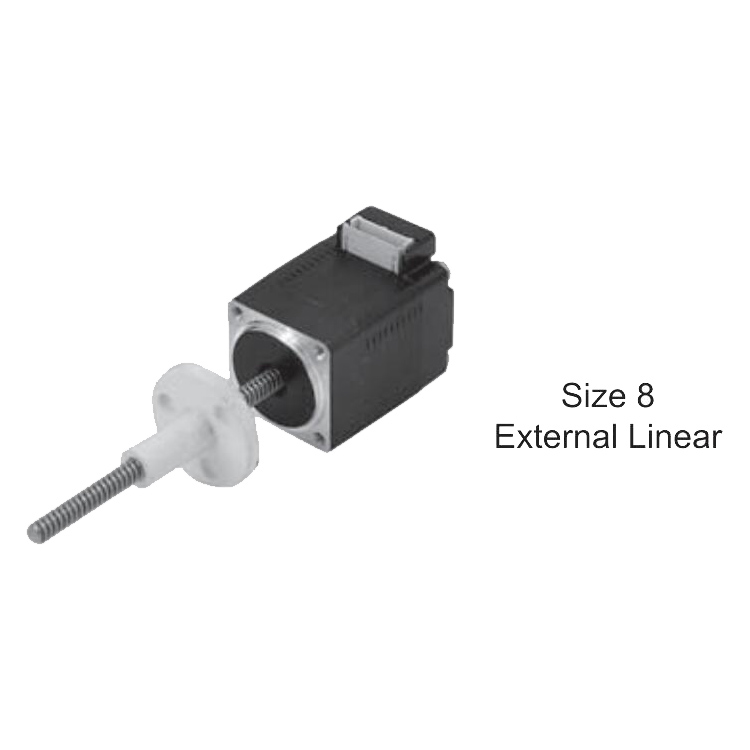

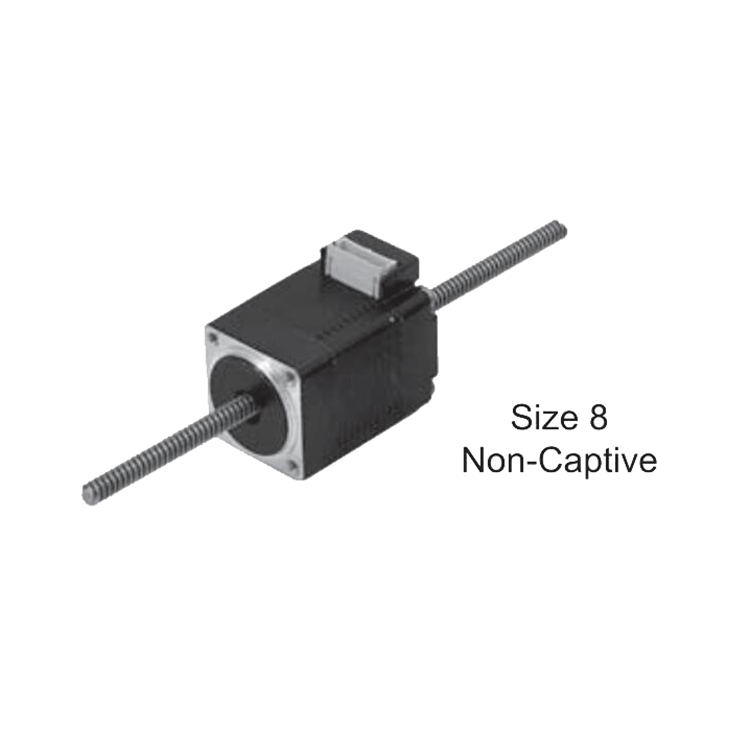

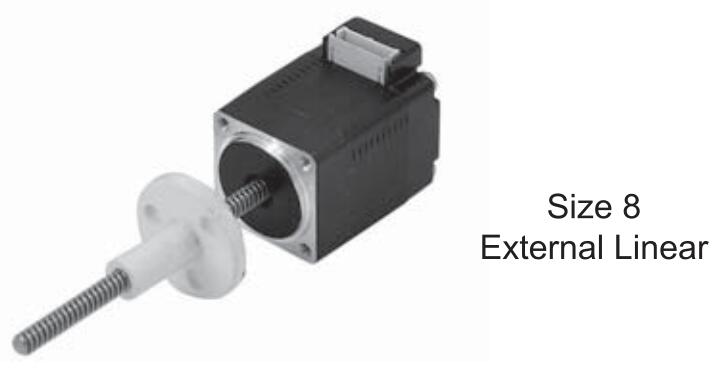

21000 series size 8 linear stepping motor

Model No.:
CB-LA-003
Features:
Hybrid linear stepper motor



Product Features


1) Hybrid linear stepper motor.



Product Description


1)Type:Hybrid linear stepper motor
2)Stepping angle:1.8°
3)Wiring:bipolar

4)Rated voltage:2.5v/5v/7.5v

5)Rated current:0.49A/0.24A/0.16A

6)Resistance/phase:5.1Ω/20.4Ω/45.9Ω

7)Inductance/phase:1.5mH/5.0mH/11.7mH
8)Power consumption:2.45W
9)Temperature rise:75℃

10)Insulation resistance:20MΩ


Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.



Product Information

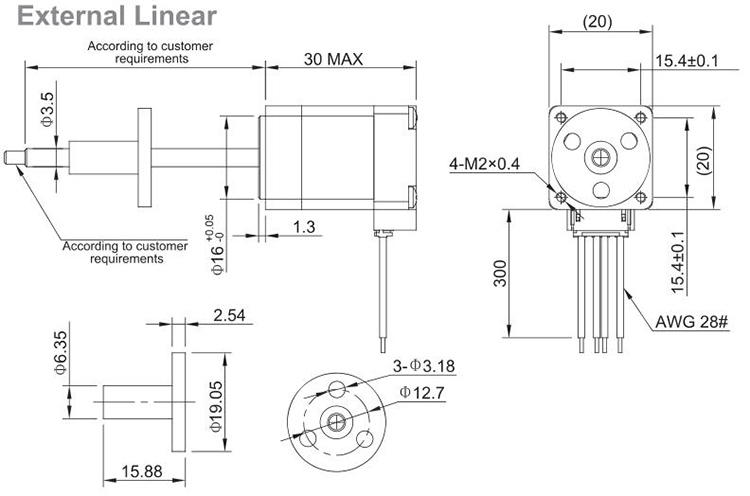

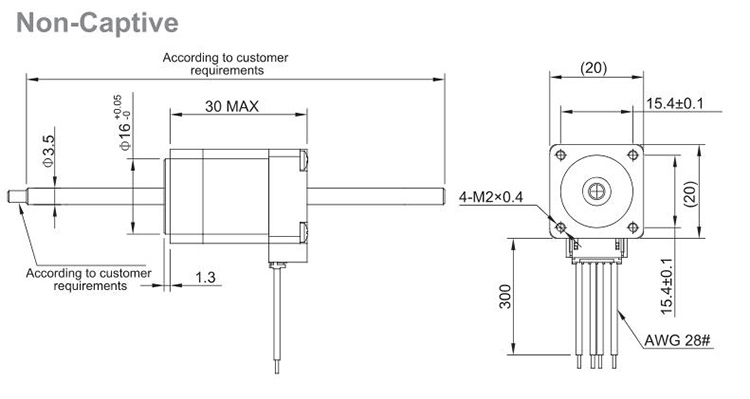

Dimension of motor:20mm*20mm*30mm Max
Length of motor:30mm Max
Color: black & silver



Quotation Information


Price Range:$36- $80 per piece
Minimum Order Quantity:100 pieces
Lead time:30 days
