Product Features

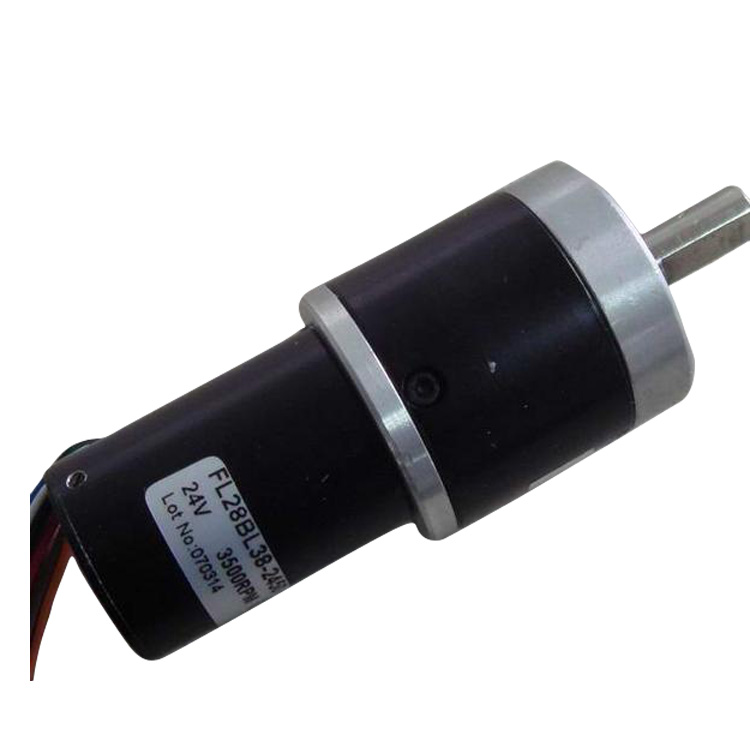

1) Equipped with a 36mm planetary gearbox, this model can achieve low speed and high torque output.
2) It is small in size and runs stably.
3) It is frequenctly used in the advertising industrial and vehicle industrial.
Product Description
1)Motor specification:
| Model | 28BL38-2450 | 28BL38-2460 |
| Number of poles | 4 | 4 |
| Number of phase | 3 | 3 |
| Rated voltage VDC | 24 | 24 |
| Rated speed RPM | 3450 | 4350 |
| Rated torque N.m | 9 | 10 |
| Rated power W | 2.9 | 3.5 |
| Rated current A | 0.3 | 0.35 |
| Peak current A | 0.9 | 1.05 |
| resistance Ω | 31 | 19 |
| Industance mH | 11.8 | 7.8 |
2)Gearbox specification:
| Ration | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 264 |
| No. of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 |
| Length mm | 31.5 | 31.5 | 38.5 | 38.5 | 38.5 | 48.5 | 48.5 | 48.5 | 48.5 | 55.5 |
| Short time max load kg.cm | 10 | 10 | 30 | 30 | 30 | 60 | 60 | 60 | 60 | 60 |
| 28BL38-2450 | ||||||||||
No-load speed | 1351 | 961 | 357 | 263 | 185 | 98 | 70 | 50 | 36 | 19 |
| Rated speed RPM | 932 | 663 | 246 | 181 | 127 | 67 | 48 | 34 | 24 | 13 |
| Rated Torque mN.m | 30 | 42 | 102 | 128 | 196 | 334 | 465 | 656 | 912 | 1558 |
| No-load speed | 1621 | 1153 | 428 | 315 | 222 | 117 | 84 | 60 | 43 | 22 |
| Rated speed RPM | 1175 | 836 | 310 | 228 | 161 | 85 | 61 | 43 | 31 | 16 |
| Rated Torque mN.m | 33.3 | 46.8 | 113 | 154 | 218 | 371 | 517 | 729 | 1013 | 1732 |
Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.
Product Information
Width of gear box:36mm
Diameter of motor:28mm
Length of motor: 31.5, 38.5, 48.5, 55.5mm
Color: black
Quotation Information
Price Range:$12 - $48 per piece
Minimum Order Quantity:200 pieces
Lead time:30 days
