Product Features
1) Planetary gearbox.
2) Stable running.
3) Long service life.
Product Description
1)Motor specification:
| Model | CB22RBL68-1265 | CB22RBL68-2460 |
| Number of poles | 8 | 8 |
| Number of phase | 3 | 3 |
| Rated voltage VDC | 12V | 24V |
| Rated speed RPM | 3800 | 3800 |
| Rated torque g.cm | 20 | 20 |
| Rated power W | 8.0 | 8.0 |
| No-laod Speed RPM | 70 | 50 |
| Line to line resistance ohms | 2.7 | 11.6 |
2)Gearbox specification:
| Ration | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 |
| No. of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 |
| Length mm | 24.4 | 24.4 | 31.0 | 31.0 | 31.0 | 37.4 | 37.4 | 37.4 | 37.4 |
| CB22RBL68-1265 | |||||||||
Ratedd speed | 1027 | 730 | 271 | 200 | 140 | 74 | 53 | 38 | 27 |
| NO-load speed RPM | 1756 | 1250 | 464 | 342 | 240 | 127 | 91.5 | 65 | 46.7 |
| Rated Torque N.m | 0.3 | 0.3 | 1.2 | 1.2 | 1.2 | 3 | 3 | 3 | 3 |
| CB22RBL68-2460 | |||||||||
| No-load speed | 1617 | 1158 | 429 | 316 | 222 | 118 | 85 | 60 | 43 |
| Rated speed RPM | 1027 | 730 | 271 | 200 | 140 | 74 | 53 | 38 | 27 |
| Rated Torque N.m | 0.067 | 0.093 | 0.23 | 0.31 | 0.44 | 0.74 | 1.0 | 1.46 | 2.0 |
Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.
Product Information

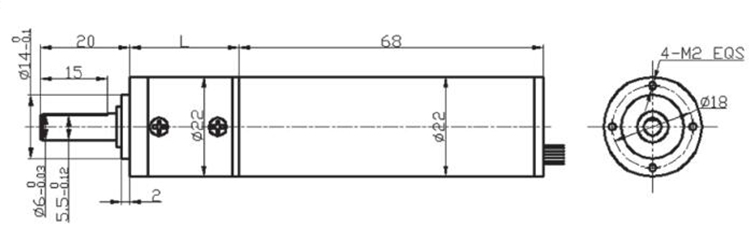

Diameter of gear box:22mm
Length of motor:24.4mm
Color: silver/black
Quotation Information
Price Range:$40 - $82per piece
Minimum Order Quantity:200 pieces
Lead time:30 days
