Slotless brushless DC motor

Model No.:
CB-FL39SBL119-320V-460
Features:
320VDC slotless brushless DC motor



Product Features


1) slotless brushless motor.

2) Rated voltage:320VDC.



Product Description


1)Type:Slotless brushless Motor
2)hall effect angle:120degree electrical angle
3)Max radial force:30N (20mm from the flange)

4)Max sahft axial load:12N

5)Radial play of shaft(near to flange≤0.08mm)

6)Axial play:0.02mm@450g

7)Insulation class:Class H
8)Insulation resistance:100MΩ, 500VDC.

Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.

Product Information

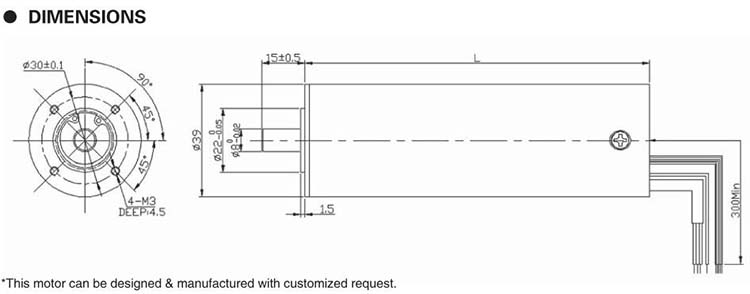

Dimension of motor:39*119 mm
Length of motor:119mm
Color: silver



Quotation Information


Price Range:$26- $80 per piece
Minimum Order Quantity:100 pieces
Lead time:30 days
