1.8° size 25mm high torque hybrid stepping motor

Model No.:
CB25STH23-0704A
Features:
High torque, hybrid, stepping.



Product Features


1) hybrid stepping DC Motor.



Product Description


1)Type:hybrid stepping DC Motor
2)Stepping angle:1.8°
3)Step Angle accuracy:±5%(full step, no load)

4)Resistance accuracy:±10%(@20℃)

5)Inductance accuracy:±20%(1KHz)

6)Temperature Rise:80 ℃ Max.(Rated current, 2 phase on)

7)Ambient Temperture:-20℃-+50℃
8)Insulation Resistance:100MΩMin.,500VDC
9)Max radial force:28N (20mm from the flange)

10)Max axial force:7N

11)Dielectric strength:500VAC for one minute

12)Insulation resistance:100MΩMin.,500VDC


Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.

Product Information

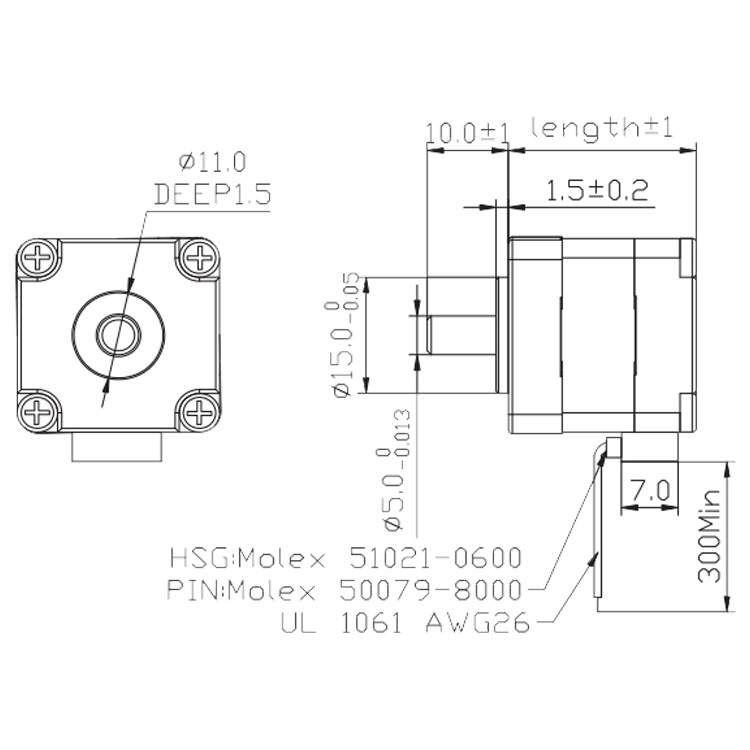

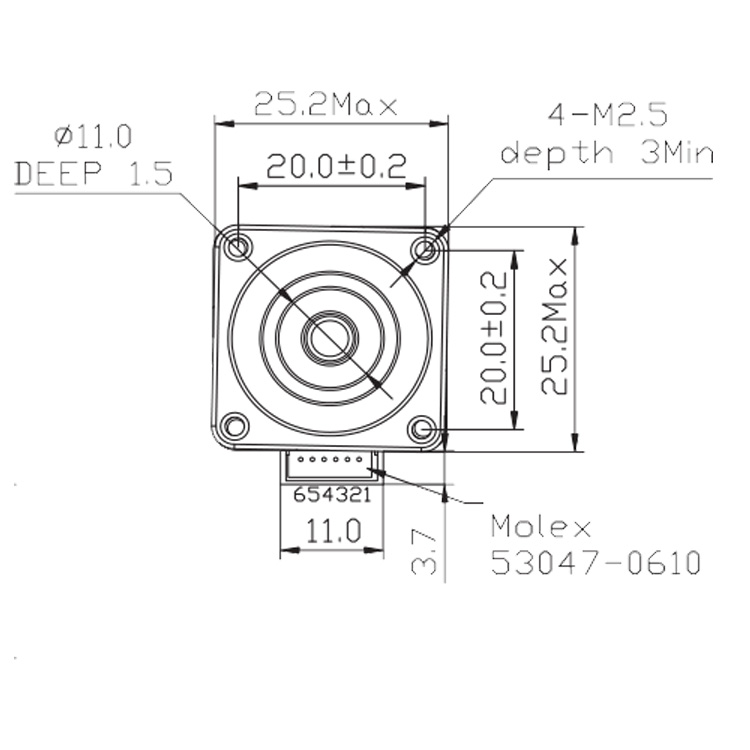

Dimension of motor:25.2*25.2*23mm
Length of motor:23mm
Color: black & silver



Quotation Information


Price Range:$30- $80 per piece
Minimum Order Quantity:100 pieces
Lead time:30 days
