For Bone Drill or Bone Saw Brushless DC Motor

Model No.:
CB-BLDC- 3053

Product Features

1) Suitable for Bone drill or Bone saw.
2) Designed & supplied by CHINABASE, NdFeb magnetic tile and Anti interference magnetic ring.
3) Smaller size, Bigger torque, Bigger cogging torque.

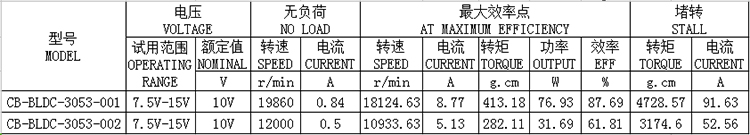

Product Description

1)Type:Brushless DC Motor
2)Motor Type:Brushless
3)Construction:Permanent Magnet
5)Speed(AT MAXIMUM EFFICIENCY):18124.63rpm
6)Continuous Current(AT MAXIMUM EFFICIENCY):8.77A
7)Output Power(AT MAXIMUM EFFICIENCY):76.93W
9)Efficiency:IE 1
11)Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.

Product Information

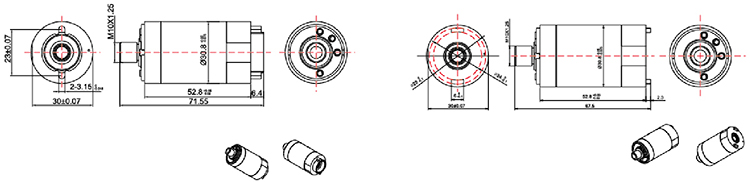

Diameter of motor:30mm
Length of motor:53mm
Color: Silver

Quotation Information

Price Range:$5 - $20 per piece
Minimum Order Quantity:1000 pieces
Lead time:30 days
