Product Features

1) Suitable for Automatic curtain machine.
2) With Gearbox designed & supplied by CHINABASE, NdFeb magnetic tile and Anti interference magnetic ring.
3) Smaller size, Bigger torque, Bigger cogging torque.

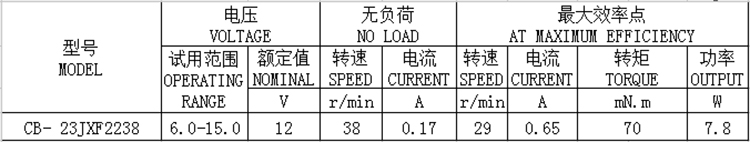

Product Description

1)Type:Gear box Motor
2)Motor Type:Brushed
3)Construction:Permanent Magnet
4)Torque(AT MAXIMUM EFFICIENCY):70mN.m
5)Speed(AT MAXIMUM EFFICIENCY):29rpm
6)Continuous Current(AT MAXIMUM EFFICIENCY):0.65A
7)Output Power(AT MAXIMUM EFFICIENCY):7.8W
8)Voltage(NOMINAL):12V
9)Efficiency:IE 1
10)Certification:ROHS
Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.

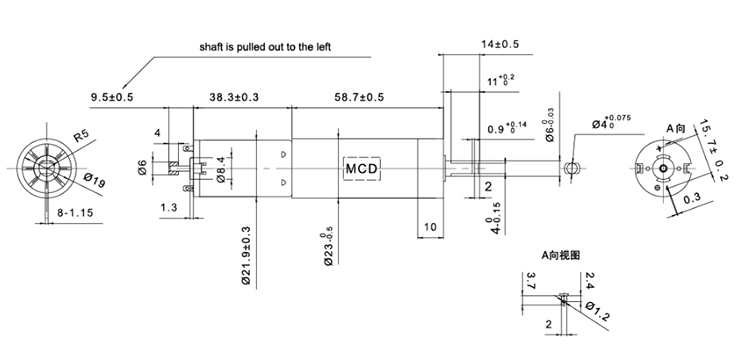

Product Information

Width of gear box:23mm
Diameter of motor:22mm
Length of motor: 38mm
Color: Silver

Quotation Information

Price Range:$5 - $20 per piece
Minimum Order Quantity:1000 pieces
Lead time:30 days
