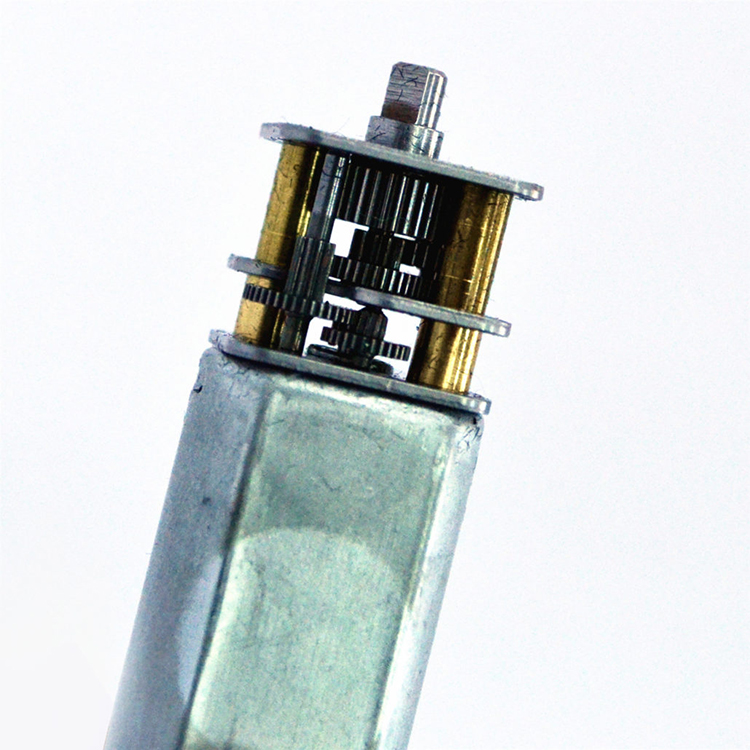

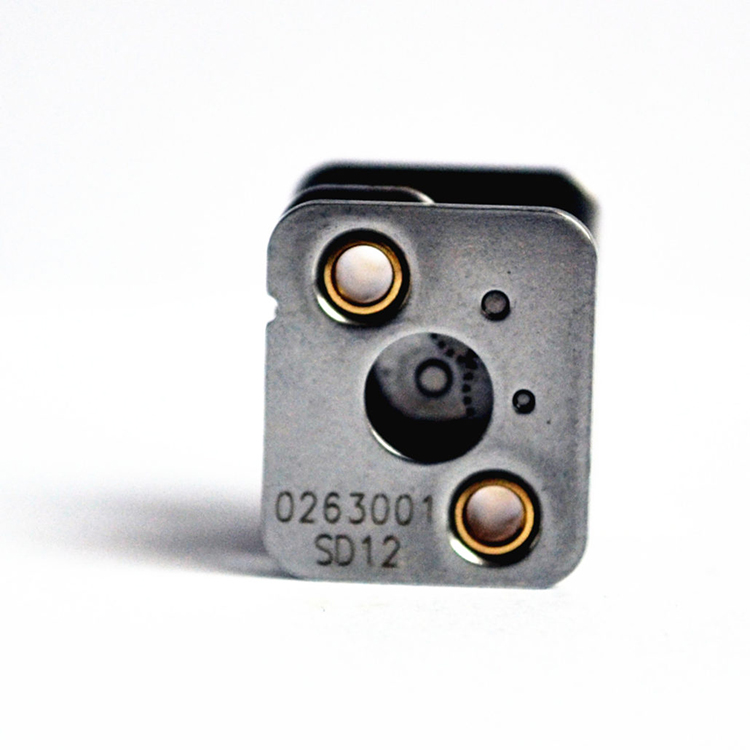

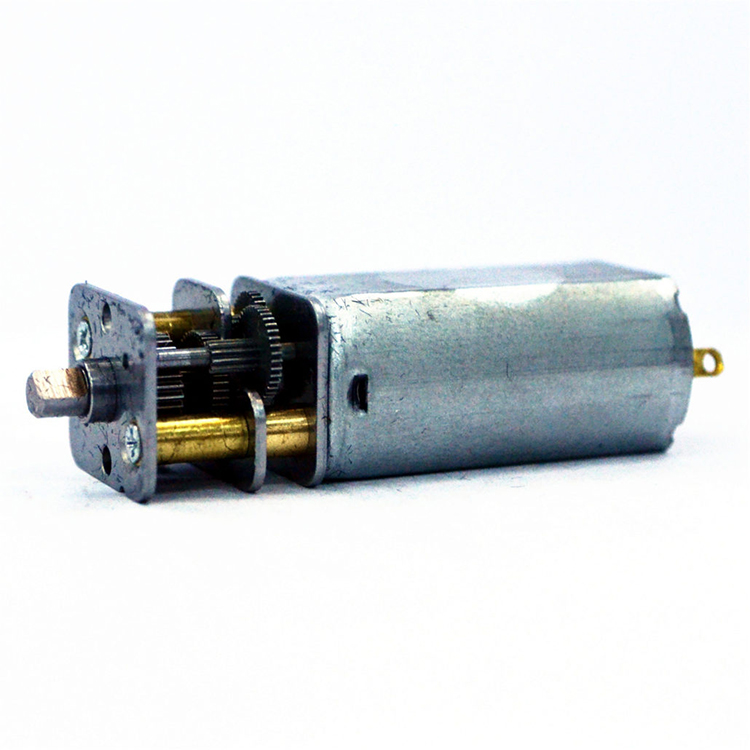

For Reclosure Motor with Gear Box

Model No.:
CB-MOTOR- 14JFG
Features:
For Reclosure Motor with Gear Box



Product Features


1) Suitable for Reclosure.

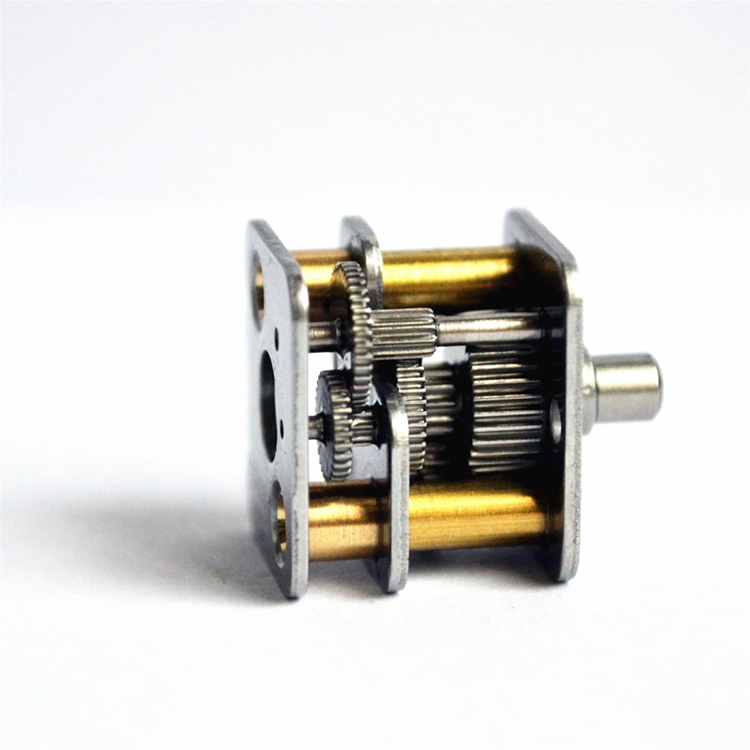

2) With Gearbox designed & supplied by CHINABASE, NdFeb magnetic tile and Anti interference magnetic ring.
3) Smaller size, Bigger torque, Bigger cogging torque.

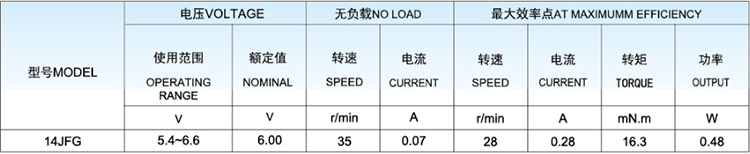

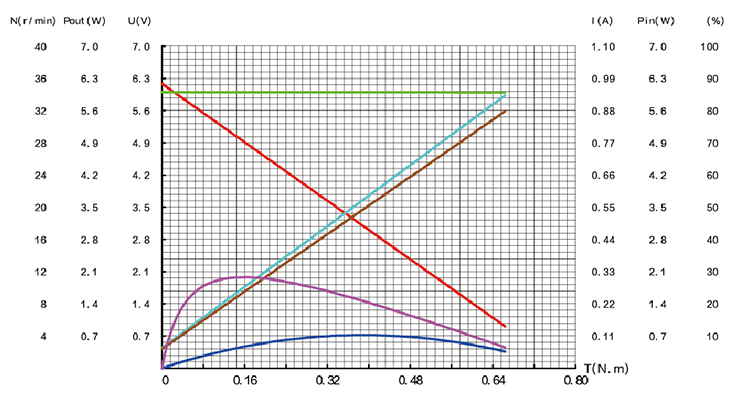

Product Description


1)Type:Gear box Motor
2)Motor Type:Brushed
3)Construction:Permanent Magnet
4)Torque(AT MAXIMUM EFFICIENCY):16.3mN.m
5)Speed(AT MAXIMUM EFFICIENCY):28rpm
6)Continuous Current(AT MAXIMUM EFFICIENCY):0.28A
7)Output Power(AT MAXIMUM EFFICIENCY):0.48W
8)Voltage(NOMINAL):6V
9)Efficiency:IE 1
10)Certification:ROHS
Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.

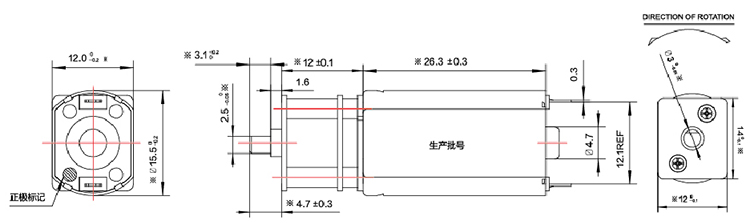

Product Information

Width of gear box:14mm
Diameter of motor:15.5mm
Length of motor: 26.3mm
Color: Silver



Quotation Information


Price Range:$5 - $20 per piece
Minimum Order Quantity:1000 pieces
Lead time:30 days
