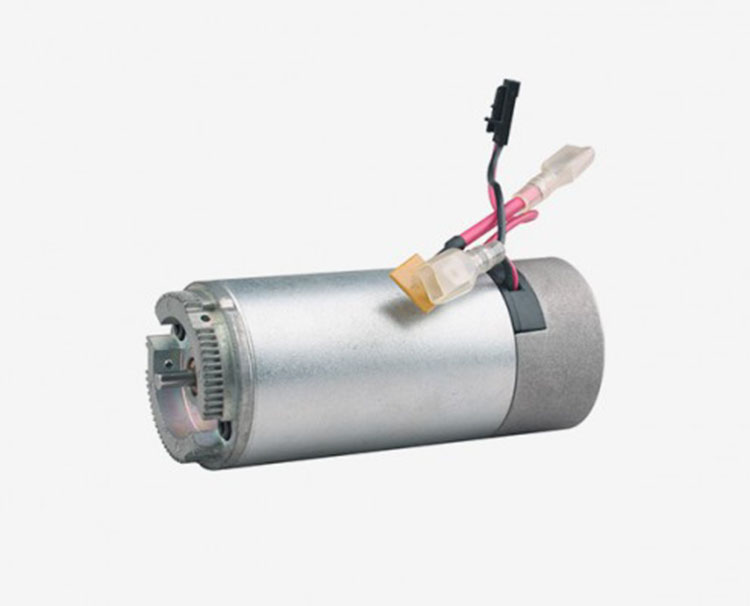

For push puller of vehicle shading DC Motor

Model No.:
CB-MOTOR- 40ZY3829
Features:
For push puller of vehicle shading DC Motor



Product Features


1) Suitable for push puller of vehicle shading.

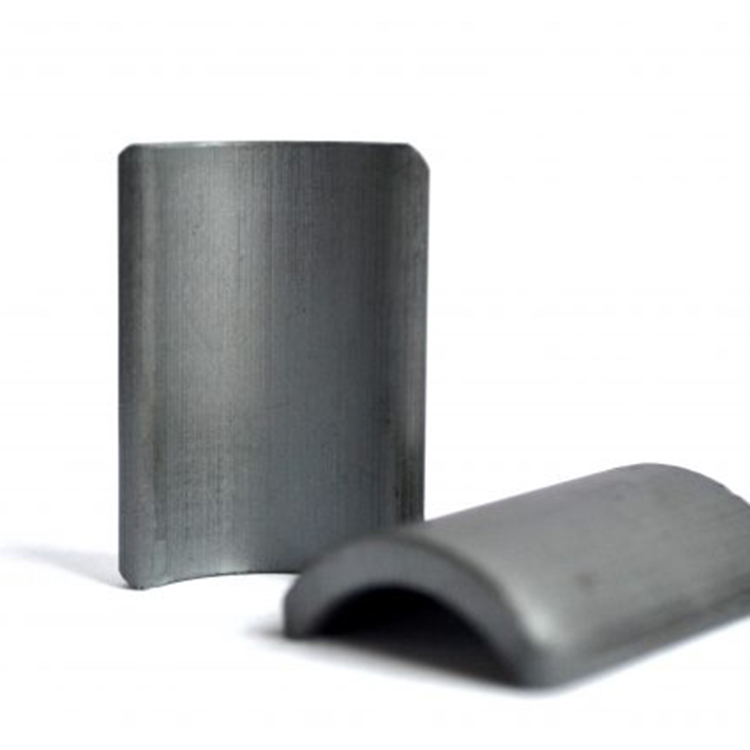

2) With NdFeb magnetic tile and Anti interference magnetic ring.
3) Smaller size, Bigger torque, Bigger cogging torque.

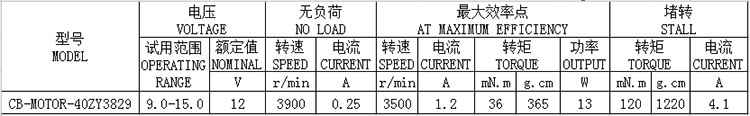

Product Description


1)Type:DC Motor
2)Motor Type:Brushed
3)Construction:Permanent Magnet
4)Torque(AT MAXIMUM EFFICIENCY):36N.m
5)Speed(AT MAXIMUM EFFICIENCY):3500rpm
6)Continuous Current(AT MAXIMUM EFFICIENCY):1.2A
7)Output Power(AT MAXIMUM EFFICIENCY):13W
8)Voltage(NOMINAL):12V
9)Efficiency:IE 1

10)Certification:ROHS
Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.



Product Information

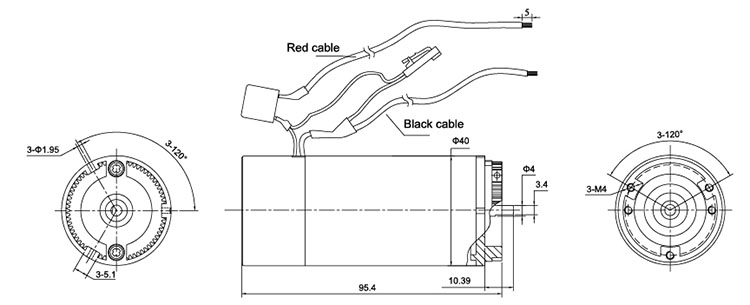

Diameter of motor:38mm
Length of motor: 29mm
Color: Silver



Quotation Information


Price Range:$1 - $5 per piece
Minimum Order Quantity:1000 pieces
Lead time:30 days
