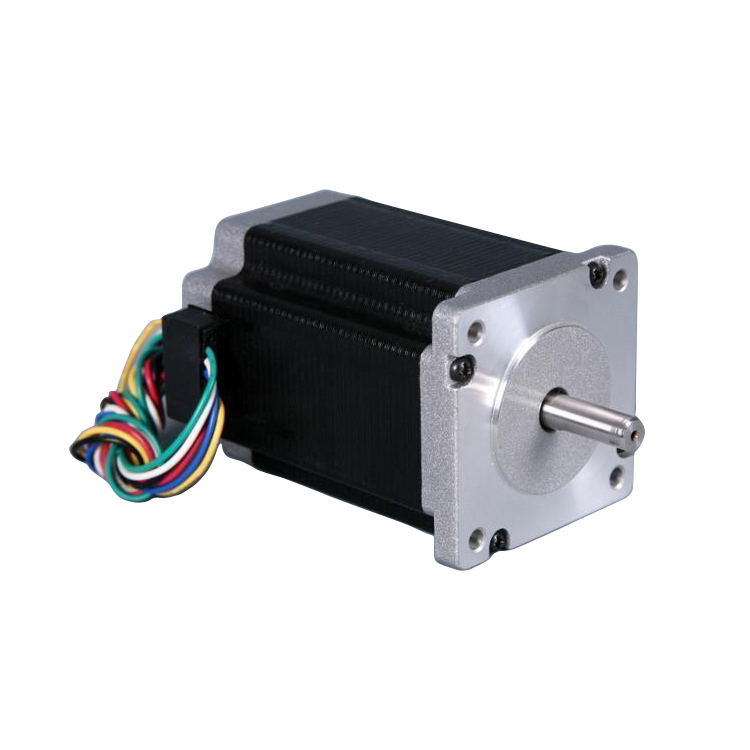

1.8° 57mm high torque hybrid stepping motor

Model No.:
Large torque, high precision,smooth running

Product Features

1) Large torque, high precision,smooth running.

Product Description

1)Type:hybrid stepping DC Motor
2)Stepping angle:1.8°
3)Step Angle accuracy:±5%(full step, no load)

4)Resistance accuracy:±10%(@20℃)

5)Inductance accuracy:±20%(1KHz)

6)Temperature Rise:80 ℃ Max.(Rated current, 2 phase on)

7)Ambient Temperture:-20℃-+50℃
8)Max radial force:75N at 20mm from the flange
9)Max axial force:15N


11)Dielectric strength:500V DC for one minute

12)Insulation resistance:100MΩMin.,500VDC

Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.

Item No.CB57STH41-1006A
Rated voltage     VDC
Current/ Phase    A
Resistance/Phase  Ω5.7

Inductance/Phase  mH

Holding torque    kg-cm3.9
number of Leads6
Rotor Inertia     g.cm²120
Weight            kg0.45
Detent Torque     kg-cm0.21
Length            mm41

Product Information

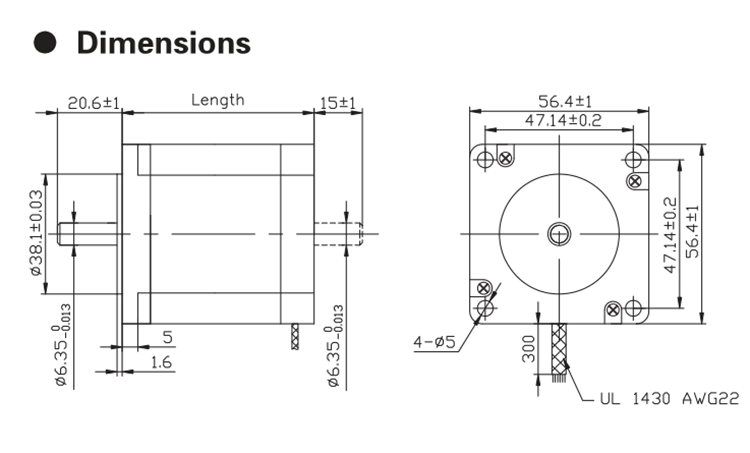

Diameter of motor:57mm
Length of motor:41mm, 51mm,56mm, 76mm, 84mm
Color: Silver

Quotation Information

Price Range:$14 - $42 per piece
Minimum Order Quantity:100 pieces
Lead time:30 days
