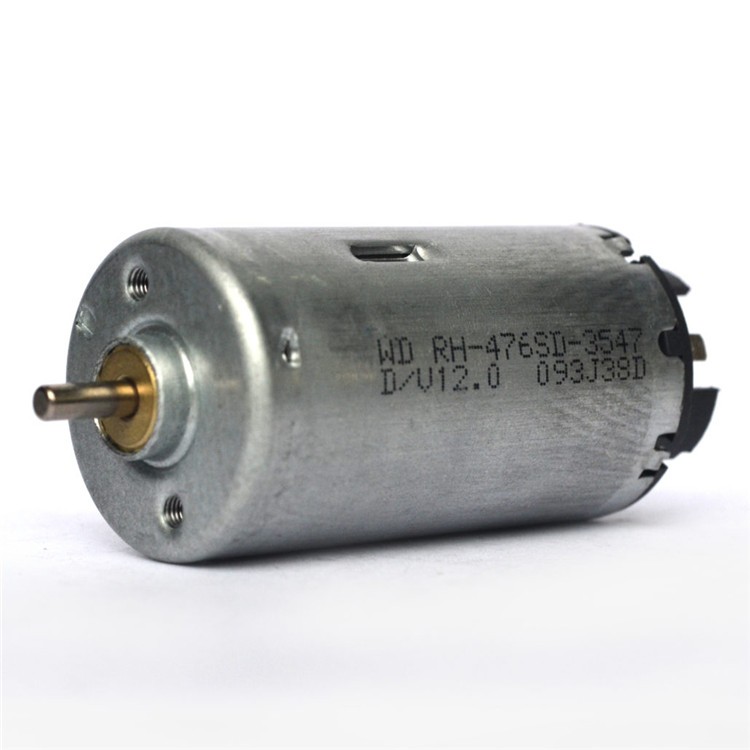

For boot of automatically shut down DC Motor

Model No.:
CB-MOTOR- RH476
Features:
For boot of automatically shut down DC Motor



Product Features



1) Suitable for automobile products, boot of automatically shut down.
2) With 6 slots structure, 4 pieces magnet and Carbon brush angle of 90 degrees.
3)Smaller size, Bigger torque, Bigger cogging torque.




Product Description



1)Type:Dc Motor
2)Motor Type:Brush
3)Construction:Permanent Magnet
4)Torque:3.50mN.m
5)Speed:6709rpm
6)Continuous Current:2.61A
7)Output Power:24.14W
8)Voltage:12V
9)Efficiency:IE 1
10)Certification:ROHS
11)Motor specification, shaft length, and wire length and be tailor-made according to customer's requirments.





Product Information



Length: 76 mm
Color: Silver




Quotation Information



Price Range:$1 - $5 per piece
Minimum Order Quantity:1000 pieces
Lead time:30 days
