Product Features
A brushless DC motor is a synchronous electric motor which is powered by direct-current electricity (DC) and which has an electronically controlled commutation system, instead of a mechanical commutation system based on brushes. In such motors, current and torque, voltage and rpm are linearly related.
Product Description
1)Type:Brushless DC Motor
2)Motor Type:Brushless
3)Winding type:Star
4)Hall effect angle:120degree electrical angle
5)Shaft run out:0.038mm
6)Radial play:0.025mm@5N
7)End play:0.075mm@10N
8)Max radial force:200N @ 20mm from the flange
9)Max axial force:65N
10)Insulation class:Class B
11)Dielectric strength:500V DC for one minute
12)Insulation resistance:100MΩMin.,500VDC
Note: These are only the typical technical data for reference, other specification such as voltage, speed, torque, shaft length can be customized.
| Model | 86SVA01 | 86SVA02 | 86SVA03 |
| Number of poles | 8 | ||
| Number of phase | 3 | ||
| Rated voltage VDC | 48 | ||
| Rated speed RPM | 3000 | ||
| Rated torque N.m | 0.35 | 0.7 | 1.4 |
| Rated power W | 110 | 220 | 440 |
| Peak torque N.m | 1.05 | 2.1 | 4.2 |
| Peak current A | 9.5 | 17.5 | 33.5 |
| Line to line resistance ohms | 0.09 | 0.34 | 0.16 |
| Line to line inductance mH | 2.6 | 1 | 0.5 |
| Toque constant Nm/A | 0.116 | 0.124 | 0.127 |
| Back E.M.F Vrms/KRPM | 8.6 | 9 | 9.4 |
| Rotor inertia g.cm² | 400 | 800 | 1600 |
| Body Length mm | 86 | 99 | 126 |
| Weight Kg | 1.9 | 2.4 | 3.5 |
Product Information

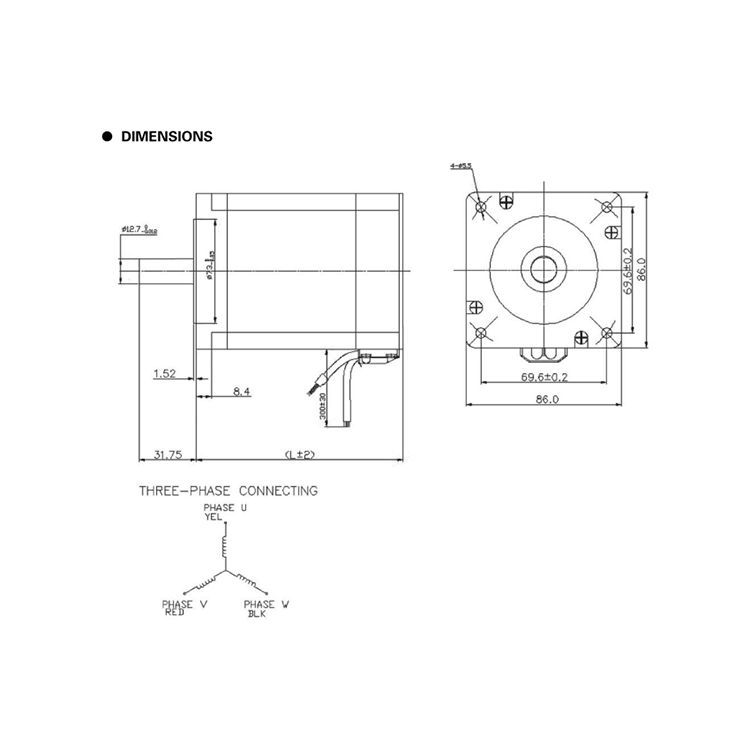

Diameter of motor:86mm
Length of motor:86/99/126mm
Color: Silver+black
Quotation Information
Price Range:$35 - $76 per piece
Minimum Order Quantity:100 pieces
Lead time:30 days
