4K HDMI Audio Extractor Converter

Model No.:
CB-HDAEC-003
Features:
support 4k



Product Features

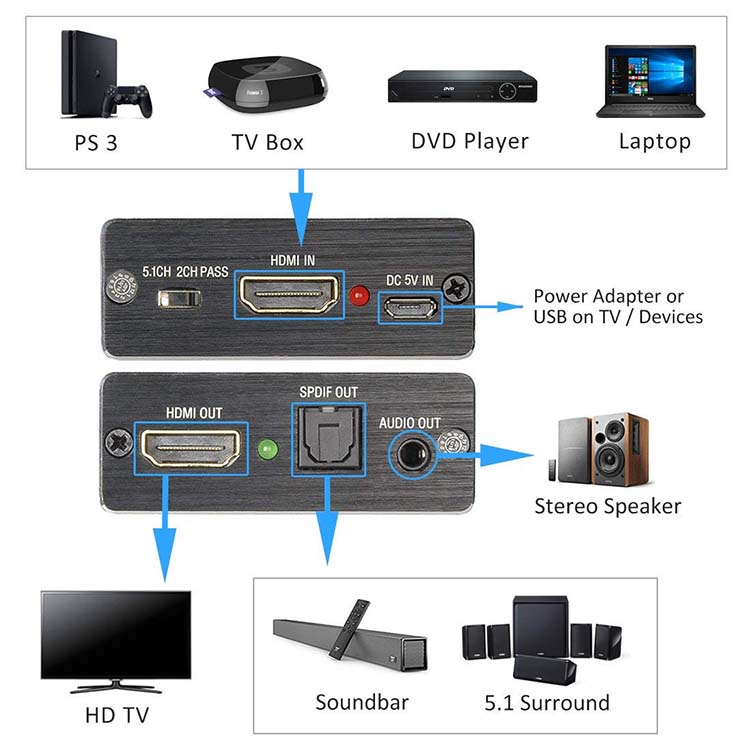

Suitable for various HDMI source devices like Roku or Chromecast without dedicated audio output as well as Blu-ray/ DVD/ HD player, cable/satellite box, Amazon Fire TV, Apple TV, PS3/4, Xbox, PC/laptop, HD camera, HD DVR etc


Product Description

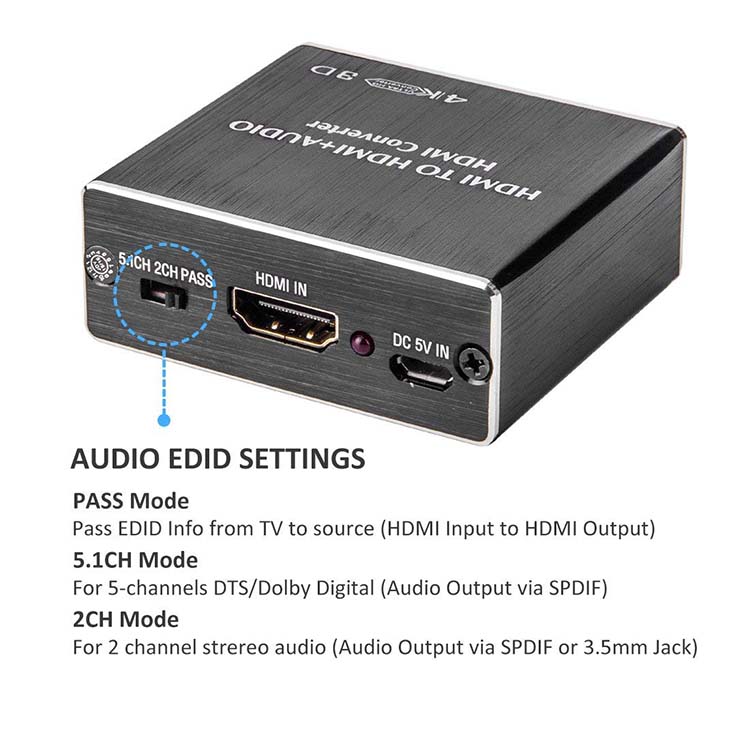

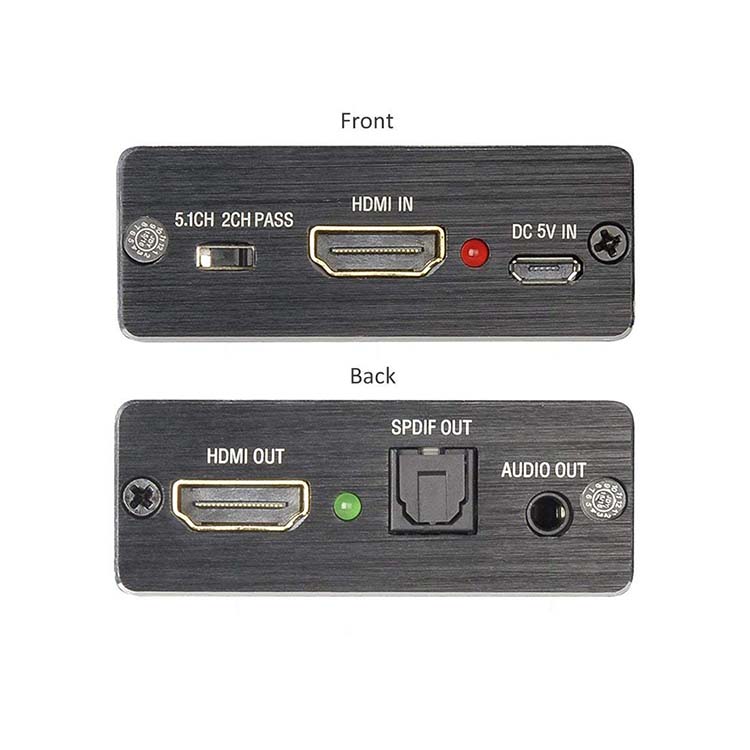

Input Port: 1 x HDMI IN, 1 x Micro USB Power Port, 3 x EDID Audio(Pass/2CH/5.1CH)

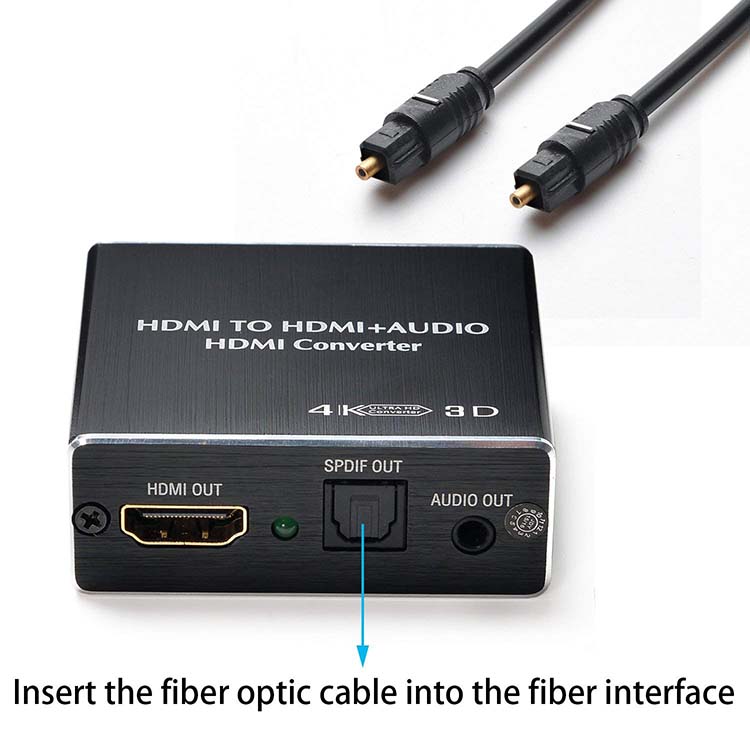

Output Port: 1 x HDMI OUT, 1 x SPDIF (Optical), 1 x 3.5mm Jack
HDMI resolution :4K x 2K, 24/50/60fs/1080P/1080i/720p/576p/576i/480p/480i
Support video color format: 24bit/deep color 30bit,36bit
Max bandwidth: 225MHz
Max baud rate: 6.75Gbps
Max working current: 190mA


Note:
This 4K x 2K HDMI audio extractor not only to meet the ideal image of the HDTV but also to meet the need for an extract audio from HDMI source. It can extract the digital audio signal embedded in HDMI source and convert it through 3.5mm analog audio output and SPDIF output at the same time. The SPDIF output both can support 2CH audio or 5.1CH audio including Dolby Digitla 5.1CH and DTS 5.1CH.



Product Information

1 X HDMI Audio Extractor
1 x Micro USB cable
1 X User Manual
